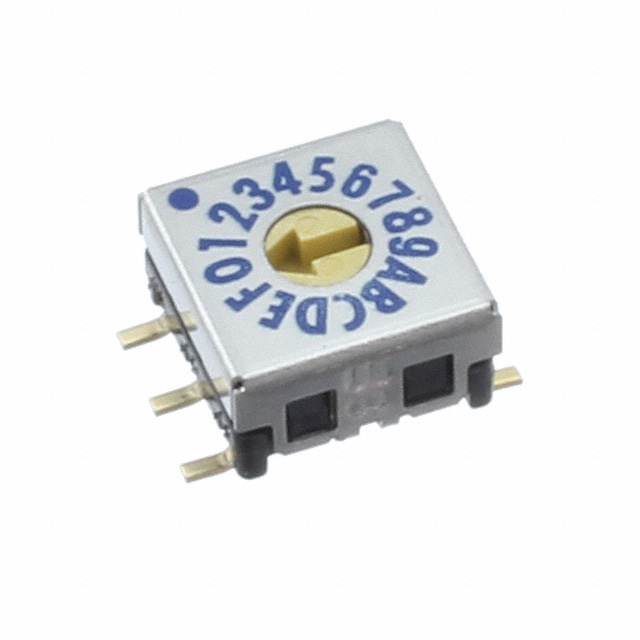

SMR7016C-1

Active

Nidec Components Corporation

SWITCH ROTARY DIP HEX 0.03A 15V

Search across all available documentation for this part.

Active

Nidec Components Corporation

SWITCH ROTARY DIP HEX 0.03A 15V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Current Rating (Amps)	Number of Positions	Height Above Board	Height Above Board	Actuator Level	Circuit	Mounting Type	Washable	Mechanical Life	Voltage Rating	Length [x]	Length [x]	Termination Style
Nidec Components Corporation SMR7016C-1E	Rotary for Tool	-25 °C	85 °C	10000 Cycles	0.1 in	Full	2.54 mm	Gold	30 mA	16	4.4 mm	0.173 in	Flush Recessed	Hexadecimal	Surface Mount		10000 Steps	15 VDC	7.5 mm	0.295 in	Gull Wing
Nidec Components Corporation SMR7016C-1	Rotary for Tool	-25 °C	85 °C	10000 Cycles	0.1 in	Full	2.54 mm	Gold	30 mA	16	4.4 mm	0.173 in	Flush Recessed	Hexadecimal	Surface Mount		10000 Steps	15 VDC	7.5 mm	0.295 in	Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	50	$ 3.78

General part information

Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 30mA 15VDC
