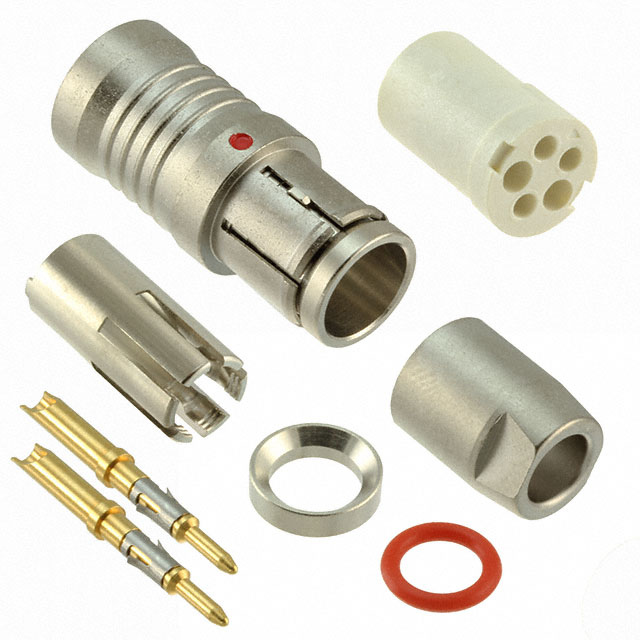

HS2C2M20C

Active

Switchcraft Inc.

CONN PLUG MALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	HS2C2M20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

CONN PLUG MALE 2POS GOLD CRIMP

Part	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Orientation	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Primary Material	Shielding	Ingress Protection	Fastening Type	Voltage Rating	Material Flammability Rating	Insert Material	Shell Material	Shell Finish	Termination	Color	Connector Type	Applications
Switchcraft Inc. HS2C2M20C	Gold	5.49 mm	4.57 mm	0.18 in	0.216 in	Keyed	Free Hanging (In-Line)	2	135 °C	-40 °C	Copper Alloy	Metal	Shielded	IP66, IP67, IP68	Push-Pull	125 VAC	UL94 HF-1	Liquid Crystal Polymer (LCP)	Copper Alloy	Electroless Nickel	Crimp, Solder Cup	Silver	Male Pins, Plug	Agriculture, Audio, General, Medical, Testing Equipment & Measurement

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
