FISD072AK

Active

Belden Inc.

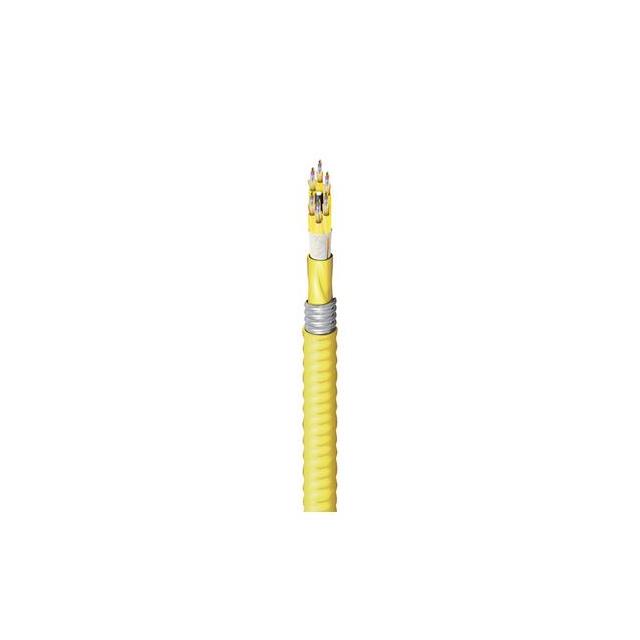

CBL FIBER OPTIC 125UM SINGLEMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FISD072AK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Armored, 72 Fibers
Jacket (Insulation) Diameter [diameter]	27.31 mm
Jacket (Insulation) Diameter [diameter]	1.075 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Singlemode

Part	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter [diameter]	Ratings	Type	Jacket Color	Style	Cladding Diameter [diameter]	Tensile Strength	Features	Features	Jacket (Insulation) Material	Core Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. FISD072PK	70 °C	0 °C	18.36 mm	0.723 in	OFNP	Singlemode	Yellow	Multiple Fibers	125 µm	40.8 kg	72 Fibers	Rip Cord	Poly-Vinyl Chloride (PVC)	9 µm
Belden Inc. FISD072AK	70 °C	0 °C		1.075 in	OFCP	Singlemode	Yellow	Multiple Fibers	125 µm	40.8 kg		72 Fibers Armored	Poly-Vinyl Chloride (PVC)	9 µm	27.31 mm
Belden Inc. FISD072FK	70 °C	-20 C		1.196 in	OFCR	Singlemode	Yellow	Multiple Fibers	125 µm	40.8 kg		72 Fibers Armored	Poly-Vinyl Chloride (PVC)	9 µm	30.38 mm
Belden Inc. FISD072RK	70 °C	-20 C		0.799 in	OFNR	Singlemode	Yellow	Multiple Fibers	125 µm	40.8 kg	72 Fibers	Rip Cord	Poly-Vinyl Chloride (PVC)	9 µm	20.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 8.56

General part information

Fiber Optic Cable Yellow Singlemode 125µm
