Description
General part information

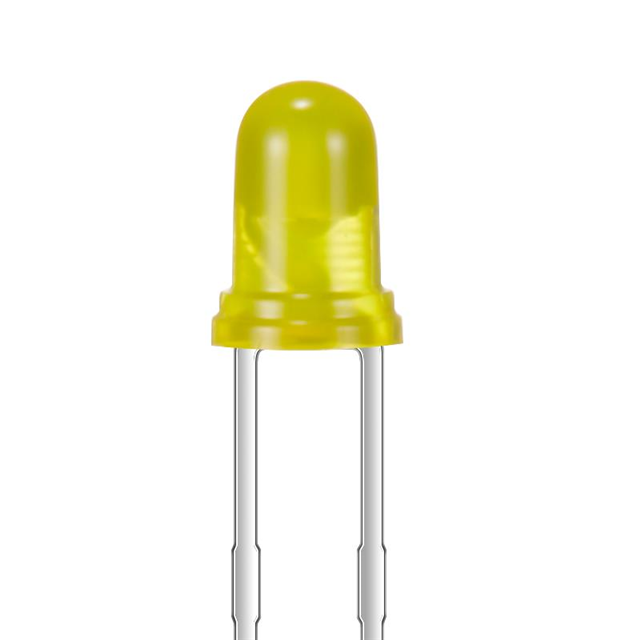

XLMYK65 Series
Yellow 590nm LED Indication - Discrete 2V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | XLMYK65D |
|---|---|
| Color | Yellow |
| Current - Test | 20 mA |
| Height (Max) | 6.45 mm |
| Lens Color | Yellow |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 497 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Dimension | 3 mm |
| Package Name | T-1 (3mm), T-1 |
| Size / Dimension Diameter | 3 mm |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 590 nm |
| Wavelength - Peak | 590 nm |
