082-62

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	082-62

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-240, Belden 9258, RG-8X
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

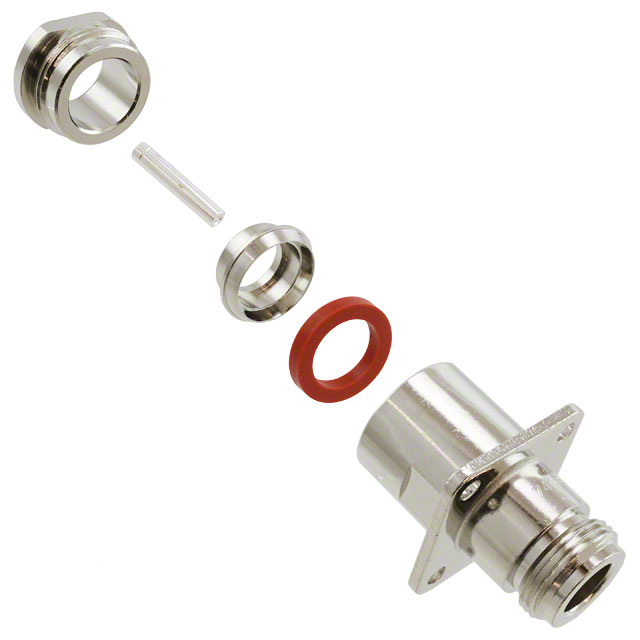

Includes	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1500 V

Part	Center Contact Material	Center Contact Plating	Body Finish	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Insertion Loss	Body Material	Mating Cycles	Ingress Protection	Cable Group	Shield Termination	Dielectric Material	Connector Type	Frequency - Max [Max]	Mounting Feature	Voltage Rating	Connector Style	Contact Termination	Includes	Number of Ports
Amphenol RF 082-62	Beryllium Copper	Silver	Nickel	Silver	-65 ░C	165 °C	50 Ohms	0.15 dB	Brass	500	Weatherproof	Belden 9258 LMR-240 RG-8X	Clamp	Polytetrafluoroethylene (PTFE)	Female Socket Jack	11 GHz	Flange	1500 V	N Type	Solder	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 29.39

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
