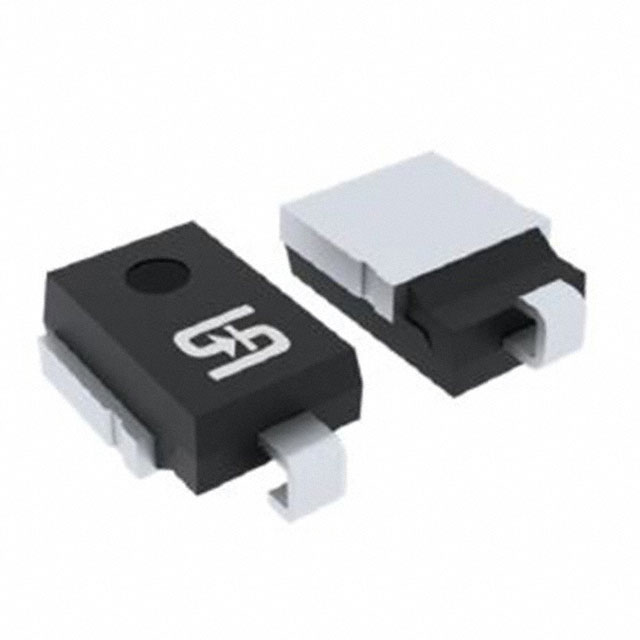

TLD8S38AH

Active

Taiwan Semiconductor Corporation

TVS DIODE 38VWM DO218AB

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

TVS DIODE 38VWM DO218AB

Technical Specifications

Parameters and characteristics for this part

Specification	TLD8S38AH

Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	DO-218AB
Power - Peak Pulse	6600 W
Power - Peak Pulse	6.6 kW
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-218AB
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Reverse Standoff (Typ)	38 V

Part	Supplier Device Package	Package / Case	Power Line Protection	Power - Peak Pulse	Power - Peak Pulse	Unidirectional Channels [custom]	Mounting Type	Type	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Qualification
Taiwan Semiconductor Corporation TLD8S38AH	DO-218AB	DO-218AB		6600 W	6.6 kW	1	Surface Mount	Zener	Automotive	-55 °C	175 ░C	38 V	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Clamp Ipp Tvs Diode Surface Mount DO-218AB
