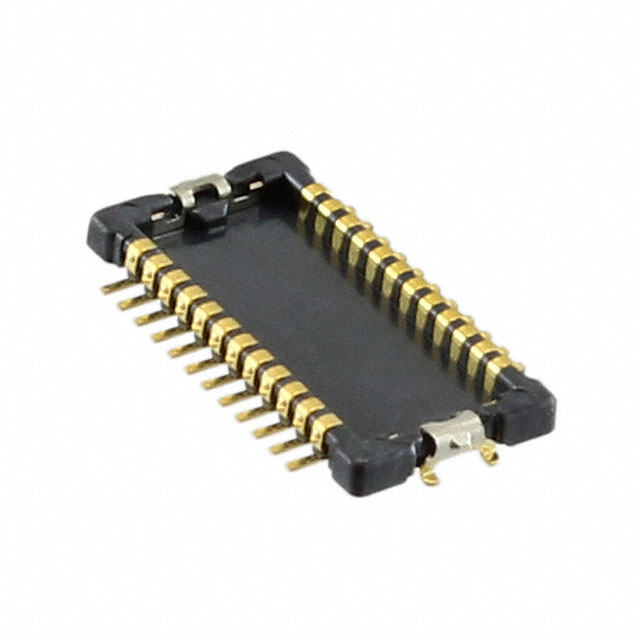

AXK8L24124BG

Active

Panasonic Electric Works

CONN HDR 24POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 24POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK8L24124BG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.63 mm
Height Above Board	0.025 in
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	24
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Connector Type	Number of Rows	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type
Panasonic Electric Works AXK8L24124BG	Solder Retention	0.63 mm	0.025 in	0.9 mm	Header Outer Shroud Contacts	2	24	Gold	0.016 in	0.4 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.94

General part information

24 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
