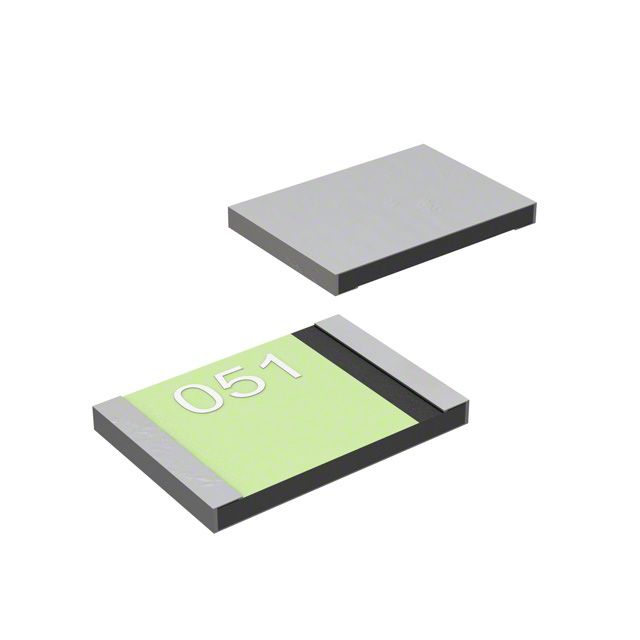

MF-MSMD075-2

Obsolete

Bourns Inc.

PTC RESET FUSE 13.2V 750MA 1812

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 13.2V 750MA 1812

Technical Specifications

Parameters and characteristics for this part

Specification	MF-MSMD075-2

Approval Agency	UR, CSA, TUV
Current - Hold (Ih) (Max) [Max]	750 mA
Current - Max [Max]	100 A
Current - Trip (It)	1.5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	1812 (4532 Metric)
Resistance - Initial (Ri) (Min) [Min]	110 mOhms
Resistance - Post Trip (R1) (Max) [Max]	450 mOhms
Size / Dimension [x]	0.179 in
Size / Dimension [x]	4.55 mm
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Thickness (Max) [Max]	3.41 mm
Thickness (Max) [Max]	0.134 in
Time to Trip	0.2 s
Type	Polymeric
Voltage - Max [Max]	13.2 V

Part	Mounting Type	Package / Case	Resistance - Initial (Ri) (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Time to Trip	Approval Agency	Current - Trip (It)
Bourns Inc. MF-MSMD150-2	Surface Mount	1812 (4532 Metric)	30 mOhms	85 °C	-40 °C	Polymeric	0.179 in	0.015 in	4.55 mm	0.39 mm	6 V	3.41 mm	0.134 in	1.5 A	100 A	120 mOhms	500 ms	CSA TUV UR	3 A
Bourns Inc. MF-MSMD014-2	Surface Mount	1812 (4532 Metric)	400 mOhms	85 °C	-40 °C	Polymeric	0.179 in	0.027 "	4.55 mm	0.68 mm	60 V	3.41 mm	0.134 in	140 mA	40 A	6.5 Ohms	150 ms	CSA TUV UR	340 mA
Bourns Inc. MF-MSMD020-2	Surface Mount	1812 (4532 Metric)	400 mOhms	85 °C	-40 °C	Polymeric	0.179 in	0.027 "	4.55 mm	0.68 mm	30 V	3.41 mm	0.134 in	200 mA	80 A	6 Ohms	60 ms	CSA TUV UR	400 mA
Bourns Inc. MF-MSMD075-2	Surface Mount	1812 (4532 Metric)	110 mOhms	85 °C	-40 °C	Polymeric	0.179 in	0.02 in	4.55 mm	0.5 mm	13.2 V	3.41 mm	0.134 in	750 mA	100 A	450 mOhms	0.2 s	CSA TUV UR	1.5 A
