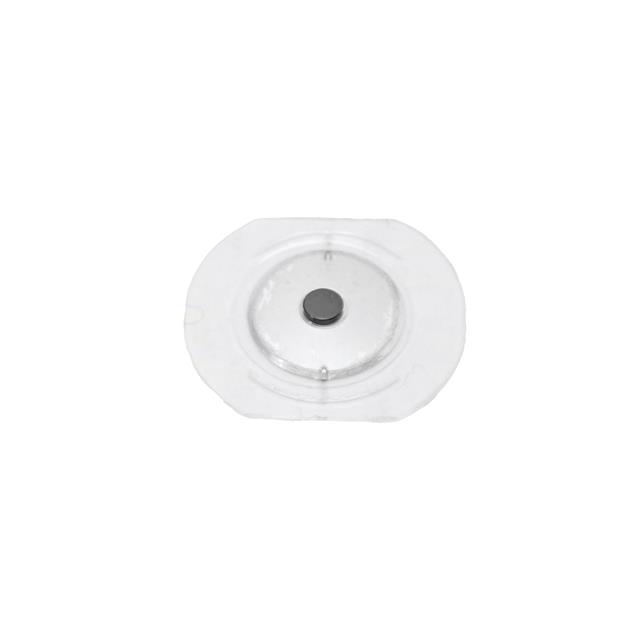

SBH-01AMT76M

Active

Mitsumi Electric Company Ltd

SWITCH TACTILE SPST-NO 0.1A 12V

Search across all available documentation for this part.

Active

Mitsumi Electric Company Ltd

SWITCH TACTILE SPST-NO 0.1A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH TACTILE SPST-NO 0.1A 12V

Part	Mounting Type	Mechanical Life	Contact Rating @ Voltage	Actuator Orientation	Illumination	Switch Function	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Operating Force
Mitsumi Electric Company Ltd SBH-01AMT74N	Surface Mount	1000000 Cycles	0.1 A, 12 VDC	Top Actuated	Non-Illuminated	Off-Mom	Circular Contact	-20 C	80 C	SPST-NO	Snap Dome	163 gf
Mitsumi Electric Company Ltd SBH-01AMT75N	Surface Mount	1000000 Cycles	0.1 A, 12 VDC	Top Actuated	Non-Illuminated	Off-Mom	Circular Contact	-20 C	80 C	SPST-NO	Snap Dome	224 gf
Mitsumi Electric Company Ltd SBH-01AMT76M	Surface Mount	1000000 Cycles	0.1 A, 12 VDC	Top Actuated	Non-Illuminated	Off-Mom	Circular Contact	-20 C	85 °C	SPST-NO	Snap Dome	326 gf
Mitsumi Electric Company Ltd SBH-01AMT77M	Surface Mount	1000000 Cycles	0.1 A, 12 VDC	Top Actuated	Non-Illuminated	Off-Mom	Circular Contact	-20 C	80 C	SPST-NO	Snap Dome	438 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
