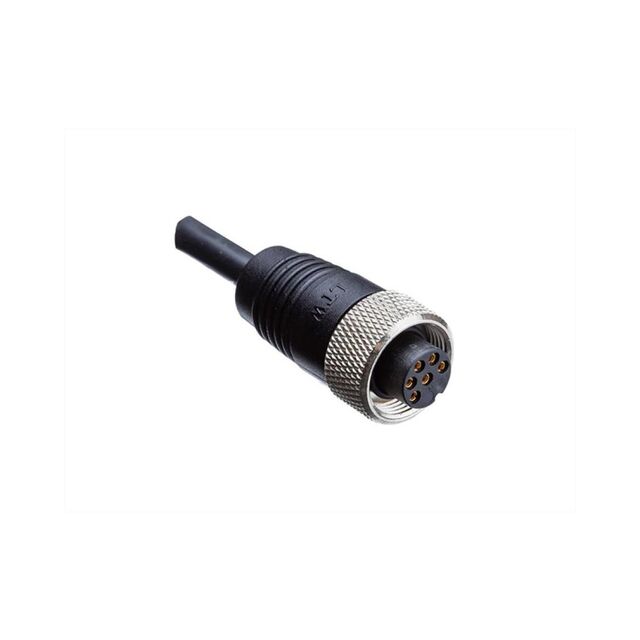

BSD-07BFFM-SL6A10

Active

Amphenol LTW

CERES, STANDARD SIZE, METAL, SHIELDED 5A, 07 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, OVERMOLDED, LENGTH

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, METAL, SHIELDED 5A, 07 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, OVERMOLDED, LENGTH

Technical Specifications

Parameters and characteristics for this part

Specification	BSD-07BFFM-SL6A10

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	7
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	B
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP66
Shielding	Shielded
Usage	Industrial Environments

Part	Color	Shielding	Assembly Configuration	1st Connector Orientation [custom]	1st Connector Shell Size - Insert	2nd Connector Type	Cable Type	1st Connector Mounting Type	Ingress Protection	Cable Material	1st Connector Number of Positions Loaded	1st Connector Number of Positions	Usage	1st Connector Gender	1st Connector Type	Length [x]	Length [x]
Amphenol LTW BSD-07BFFM-SR6A10	Black	Shielded	Standard	Keyed	B	Wire Leads	Round	Free Hanging (In-Line)	IP66	Polyvinyl Chloride (PVC)	All	7	Industrial Environments	Female Sockets	Plug Right Angle
Amphenol LTW BSD-07BFFM-SR6A05	Black	Shielded	Standard	Keyed	B	Wire Leads	Round	Free Hanging (In-Line)	IP66	Polyvinyl Chloride (PVC)	All	7	Industrial Environments	Female Sockets	Plug Right Angle	1.64 ft	500 mm
Amphenol LTW BSD-07BFFM-SL6A10	Black	Shielded	Standard	Keyed	B	Wire Leads	Round	Free Hanging (In-Line)	IP66	Polyvinyl Chloride (PVC)	All	7	Industrial Environments	Female Sockets	Plug
Amphenol LTW BSD-07BFFM-SL6A02	Black	Shielded	Standard	Keyed	B	Wire Leads	Round	Free Hanging (In-Line)	IP66	Polyvinyl Chloride (PVC)	All	7	Industrial Environments	Female Sockets	Plug	6.56 ft	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Shielded 32.8' (10.00m)

Technical documentation and resources

No documents available
