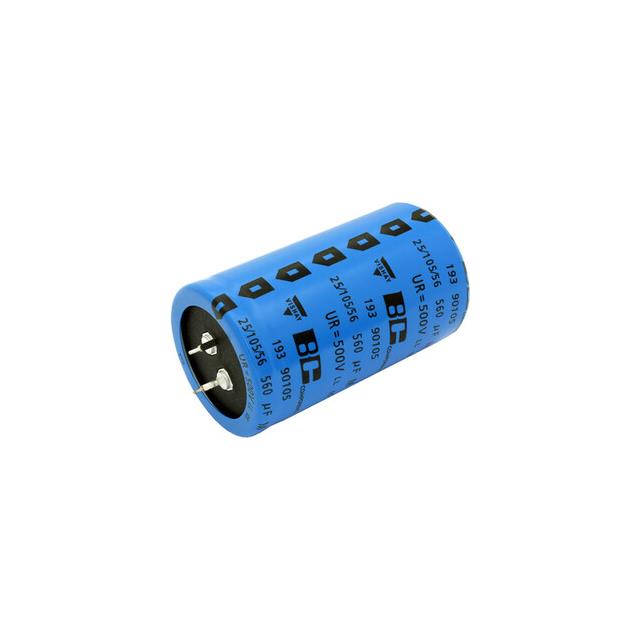

MAL219390121E3

Active

Vishay Beyschlag/Draloric/BC Components

CAP ALUM 220UF 20% 570V SNAP TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MAL219390121E3

Active

Vishay Beyschlag/Draloric/BC Components

CAP ALUM 220UF 20% 570V SNAP TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAL219390121E3	MAL2193 Series

Applications	General Purpose	General Purpose
Capacitance	220 µF	220 - 560 µF
ESR (Equivalent Series Resistance)	600 mOhm	250 - 900 mOhm
Height - Seated (Max)	-	47 - 62 mm
Height - Seated (Max)	-	1.85 - 2.441 in
Height - Seated (Max)	-	42 mm
Height - Seated (Max)	-	1.654 in
Impedance	450 mOhms	150 - 600 mOhms
Lead Spacing	0.394 in	0.394 in
Lead Spacing	10 mm	10 mm
Lifetime @ Temp.	6000 Hrs	6000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can - Snap-In	Radial, Can - Snap-In
Polarization	Polar	Polar
Ripple Current @ High Frequency	1.848 A	1.848 - 3.052 A
Ripple Current @ Low Frequency	1.32 A	1.32 - 2.46 A
Size / Dimension [diameter]	1.378 in	1.378 in
Size / Dimension [diameter]	35 mm	35 mm
Tolerance	20 %	20 %
Voltage - Rated	570 V	500 - 570 V

MAL2193 Series

CAP ALUM 560UF 20% 570V SNAP TH

Part	Mounting Type	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Tolerance	Lifetime @ Temp.	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Vishay Beyschlag/Draloric/BC Components MAL219390125E3	Through Hole	Radial, Can - Snap-In	570 V	1.378 in	35 mm	150 mOhms	250 mOhm	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	560 µF	62 mm	2.441 in	Polar	20 %	6000 Hrs	2.46 A
Vishay Beyschlag/Draloric/BC Components MAL219390121E3	Through Hole	Radial, Can - Snap-In	570 V	1.378 in	35 mm	450 mOhms	600 mOhm	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	220 µF			Polar	20 %	6000 Hrs	1.32 A	1.848 A
Vishay Beyschlag/Draloric/BC Components MAL219390103E3	Through Hole	Radial, Can - Snap-In	500 V	1.378 in	35 mm	350 mOhms	500 mOhm	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	390 µF	47 mm	1.85 in	Polar	20 %	6000 Hrs	1.94 A	2.716 A
Vishay Beyschlag/Draloric/BC Components MAL219390122E3	Through Hole	Radial, Can - Snap-In	570 V	1.378 in	35 mm	300 mOhms	400 mOhm	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	330 µF			Polar	20 %	6000 Hrs	1.7 A	2.38 A	42 mm	1.654 in
Vishay Beyschlag/Draloric/BC Components MAL219390102E3	Through Hole	Radial, Can - Snap-In	500 V	1.378 in	35 mm	400 mOhms	600 mOhm	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	330 µF			Polar	20 %	6000 Hrs	1.74 A	2.436 A	42 mm	1.654 in
Vishay Beyschlag/Draloric/BC Components MAL219390104E3	Through Hole	Radial, Can - Snap-In	500 V	1.378 in	35 mm	300 mOhms	450 mOhm	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	470 µF	52 mm	2.047 in	Polar	20 %	6000 Hrs	2.18 A	3.052 A
Vishay Beyschlag/Draloric/BC Components MAL219390101E3	Through Hole	Radial, Can - Snap-In	500 V	1.378 in	35 mm	600 mOhms	900 mOhm	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	220 µF			Polar	20 %	6000 Hrs	1.35 A	1.89 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.26
		10	$ 14.12
		50	$ 12.21
		100	$ 10.99
		500	$ 10.15
		1000	$ 9.54

Description

General part information

MAL2193 Series

220 µF 570 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 600mOhm @ 100Hz 6000 Hrs @ 105°C
