MEC1-120-02-S-D-A-K-TR

Active

Samtec Inc.

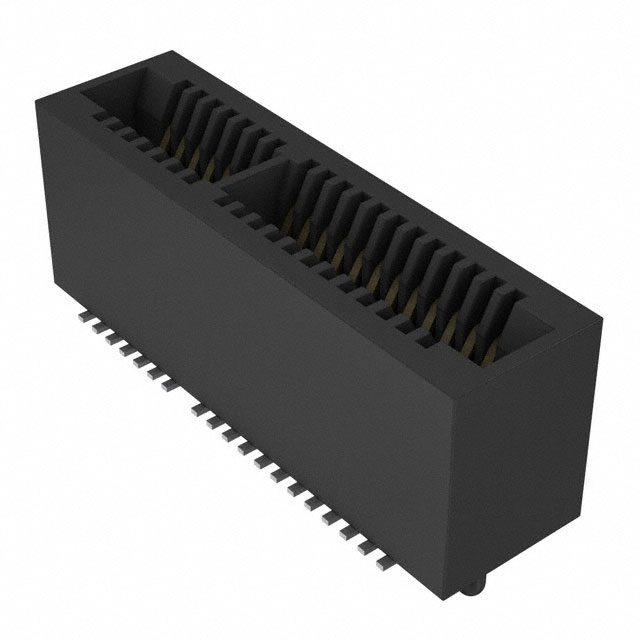

CARD EDGE CONNECTOR, DUAL SIDE, 1.6 MM, 40 CONTACTS, SURFACE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MEC1 Datasheet +1

MEC1-120-02-S-D-A-K-TR

Active

Samtec Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.6 MM, 40 CONTACTS, SURFACE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet MEC1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC1-120-02-S-D-A-K-TR

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Loop Bellows
Features	Pick and Place
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

MEC1-120 Series

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Card Thickness	Card Thickness	Card Type	Material - Insulation	Features	Contact Material	Color	Contact Finish Thickness	Contact Finish Thickness	Gender	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Read Out	Contact Type
Samtec Inc. MEC1-120-02-S-D-A-K-TR	Solder	-55 °C	125 °C	2	Surface Mount	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	Pick and Place	Phosphor Bronze	Black	0.76 Ám	30 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
Samtec Inc. MEC1-120-02-F-D-NP-A-K-TR	Solder	-55 °C	125 °C	2	Surface Mount	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	Beryllium Copper	Black	0.076 Ám	3 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
Samtec Inc. MEC1-120-02-L-D-RA1-NP-SL	Solder	-55 °C	125 °C	2	Surface Mount Right Angle	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)		Phosphor Bronze	Black	0.25 Ám	10 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
Samtec Inc. MEC1-120-02-L-D-RA1-SL-TR	Solder	-55 °C	125 °C	2	Surface Mount Right Angle	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)		Phosphor Bronze	Black	0.25 Ám	10 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
Samtec Inc. MEC1-120-02-L-D-A-K-TR	Solder	-55 °C	125 °C	2	Surface Mount	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	Phosphor Bronze	Black	0.25 Ám	10 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
Samtec Inc. MEC1-120-02-FM-D-RA1-NP-SL-T	Solder	-55 °C	125 °C	2	Surface Mount Right Angle	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)		Phosphor Bronze	Black	0.076 Ám	3 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
Samtec Inc. MEC1-120-02-FM-D-RA1-NP-SL-TR	Solder	-55 °C	125 °C	2	Surface Mount Right Angle	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)		Phosphor Bronze	Black	0.076 Ám	3 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
Samtec Inc. MEC1-120-02-F-D-EM2	Solder	-55 °C	125 °C	2	Surface Mount	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	Board Guide	Phosphor Bronze	Black	0.076 Ám	3 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
Samtec Inc. MEC1-120-02-L-D-RA1-SL	Solder	-55 °C	125 °C	2	Surface Mount Right Angle	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)		Beryllium Copper	Black	0.25 Ám	10 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
Samtec Inc. MEC1-120-02-S-D-A-TR	Solder	-55 °C	125 °C	2	Surface Mount	0.062 in	1.57 mm	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	Board Guide	Beryllium Copper	Black	0.76 Ám	30 Áin	Female	0.039 in	1 mm	40	Gold	Dual	Loop Bellows
