700DP7B10M1QE

Active

E-Switch

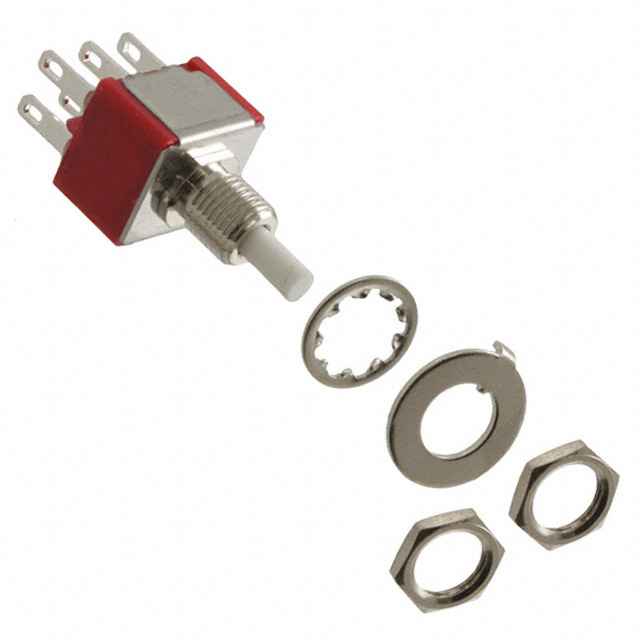

SWITCH: PUSH-BUTTON; POS: 2; DPDT; ON-(ON); LEADS: FOR SOLDERING

Deep-Dive with AI

Search across all available documentation for this part.

700DP7B10M1QE

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; DPDT; ON-(ON); LEADS: FOR SOLDERING

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	700DP7B10M1QE

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

700DP7 Series

Part	Actuator Marking	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Electrical Life	Type	Mounting Type	Voltage Rating - DC	Color - Actuator/Cap	Actuator Type	Termination Style	Circuit	Switch Function	Panel Cutout Dimensions [diameter]
E-Switch 700DP7B20VS2QEC1BLK	No Marking	120 V	-30 ░C	85 °C	3 A	50000 Cycles	Standard	Through Hole	28 V	Black	Button Round	PC Pin	DPDT	On-Mom
E-Switch 700DP7B11M1RE	No Marking	20 V	-30 ░C	85 °C	0.4 VA	50000 Cycles	Standard	Panel Mount Rear	20 V	White	Round Plunger	Solder Lug	DPDT	On-Mom	0.25 in
E-Switch 700DP7B10VS2REC1BLK	No Marking	20 V	-30 ░C	85 °C	0.4 VA	50000 Cycles	Standard	Panel Mount Rear	20 V	Black	Button Round	PC Pin	DPDT	On-Mom	0.25 in
E-Switch 700DP7B10M6QEC1BLK	No Marking	120 V	-30 ░C	85 °C	3 A	50000 Cycles	Standard	Panel Mount Rear Right Angle	28 V	Black	Button Round	PC Pin	DPDT	On-Mom	0.25 in
E-Switch 700DP7B10M6QEH	No Marking	120 V	-30 ░C	85 °C	3 A	50000 Cycles	Standard	Panel Mount Rear Right Angle	28 V	White	Round Plunger	PC Pin	DPDT	On-Mom	0.25 in
E-Switch 700DP7B10M2QEH	No Marking	120 V	-30 ░C	85 °C	3 A	50000 Cycles	Standard	Panel Mount Rear	28 V	White	Round Plunger	PC Pin	DPDT	On-Mom	0.25 in
E-Switch 700DP7B10M1QE	No Marking	120 V	-30 ░C	85 °C	3 A	50000 Cycles	Standard	Panel Mount Rear	28 V	White	Round Plunger	Solder Lug	DPDT	On-Mom	0.25 in
E-Switch 700DP7B11M1QEH	No Marking	120 V	-30 ░C	85 °C	3 A	50000 Cycles	Standard	Panel Mount Rear	28 V	White	Round Plunger	Solder Lug	DPDT	On-Mom	0.25 in
E-Switch 700DP7B10M1REC2RED	No Marking	20 V	-30 ░C	85 °C	0.4 VA	50000 Cycles	Standard	Panel Mount Rear	20 V	Red	Button Round	Solder Lug	DPDT	On-Mom	0.25 in
E-Switch 700DP7B11M1REH	No Marking	20 V	-30 ░C	85 °C	0.4 VA	50000 Cycles	Standard	Panel Mount Rear	20 V	White	Round Plunger	Solder Lug	DPDT	On-Mom	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 5.09
TME	N/A	200	$ 8.01

Description

General part information

700DP7 Series

Pushbutton Switch DPDT Standard Panel Mount, Rear
