Q-0J02C0003024i

Active

Amphenol Custom Cable

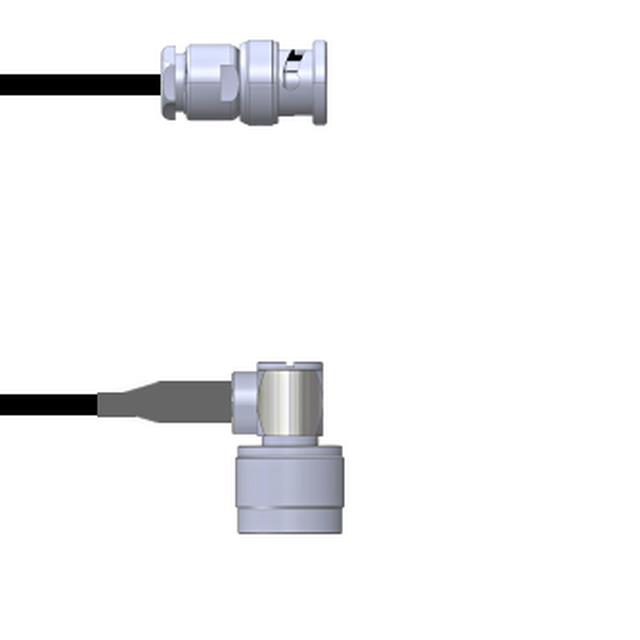

COAX CBL BNC TO N-TYPE 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J02C0003024i

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J02C0003024i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0J02C0 Series

Part	1st Contact Gender	Length	Length	Frequency - Max [Max]	Overall Impedance	1st Connector	Features	Style	1st Connector Mounting Type	2nd Connector Mounting Type	Color	2nd Connector	2nd Contact Gender	Cable Type	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0J02C0003024i	Male	24 "	609.6 mm	4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	N-Type Plug Right Angle	Male	RG-174
Amphenol Custom Cable Q-0J02C0003036i	Male	36 in	91.44 cm	4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	N-Type Plug Right Angle	Male	RG-174
Amphenol Custom Cable Q-0J02C0005072i	Male	72 in	1.8 m	4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	N-Type Plug Right Angle	Male	RG-316	6 ft
Amphenol Custom Cable Q-0J02C0003006i	Male	6 in	152.4 mm	4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	N-Type Plug Right Angle	Male	RG-174
Amphenol Custom Cable Q-0J02C0005003M	Male	118.1 in	3 m	4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	N-Type Plug Right Angle	Male	RG-316	9.8 '
Amphenol Custom Cable Q-0J02C0003003M	Male	118.1 in	3 m	4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	N-Type Plug Right Angle	Male	RG-174	9.8 '
Amphenol Custom Cable Q-0J02C0005036i	Male	36 in	91.44 cm	4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	N-Type Plug Right Angle	Male	RG-316
Amphenol Custom Cable Q-0J02C0005060i	Male	5 '	1.5 m	4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	N-Type Plug Right Angle	Male	RG-316	5 ft
Amphenol Custom Cable Q-0J02C0005018i	Male			4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	N-Type Plug Right Angle	Male	RG-316		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J02C0003.25M	Male			4 GHz	50 Ohms	BNC Plug	Shielded	BNC to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	N-Type Plug Right Angle	Male	RG-174			250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 62.98
		25	$ 61.76
		50	$ 60.54
		100	$ 59.32
		250	$ 58.10

Description

General part information

Q-0J02C0 Series

Cable Assembly Coaxial BNC to N-Type RG-174 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
