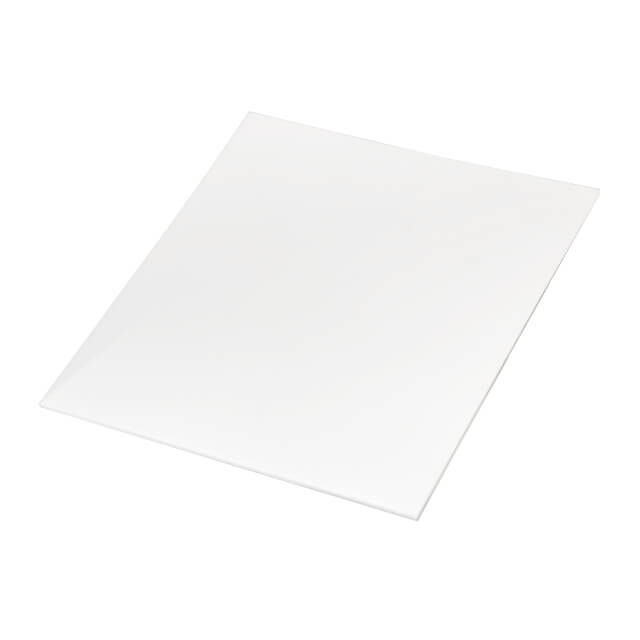

AF500-202005

Active

CUI Devices

THERM PAD 20MMX20MM 1 SHT=190PC

Search across all available documentation for this part.

Active

CUI Devices

THERM PAD 20MMX20MM 1 SHT=190PC

Technical Specifications

Parameters and characteristics for this part

Part	Color	Thickness	Thickness	Shape	Adhesive	Material	Outline [y]	Outline [x]	Thermal Conductivity
CUI Devices AF500-707005	White	0.0197 in	0.5 mm	Square	Tacky - Both Sides	Non-Silicone	70 mm	70 mm	3 W/m-K
CUI Devices AF500-414505	White	0.0197 in	0.5 mm	Rectangular	Tacky - Both Sides	Non-Silicone	45 mm	41 mm	3 W/m-K
CUI Devices AF500-204005	White	0.0197 in	0.5 mm	Rectangular	Tacky - Both Sides	Non-Silicone	40 mm	20 mm	3 W/m-K
CUI Devices AF500-303005	White	0.0197 in	0.5 mm	Square	Tacky - Both Sides	Non-Silicone	30 mm	30 mm	3 W/m-K
CUI Devices AF500-202005	White	0.0197 in	0.5 mm	Square	Tacky - Both Sides	Non-Silicone	20 mm	20 mm	3 W/m-K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.02
Digikey	Sheet	1	$ 31.82

General part information

Thermal Pad White 20.00mm x 20.00mm Square Tacky - Both Sides
