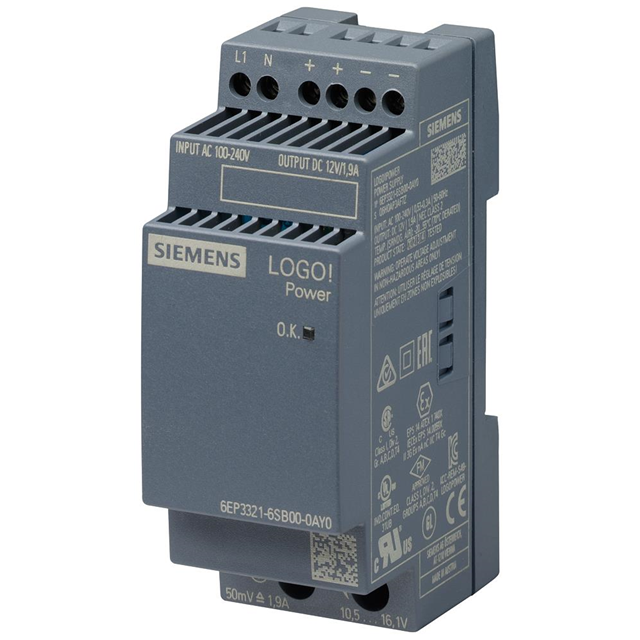

6EP33216SB000AY0

Active

Siemens

AC/DC DIN RAIL SUPPLY 12V 23W

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 12V 23W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP33216SB000AY0

AC Voltage - Input [Max]	264 VAC, 240 VAC
AC Voltage - Input [Min]	85 VAC, 100 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CSA, cCSAus, cULus, UL, cUL, CB, CE
Current - Output (Max) [Max]	1.9 A
DC Voltage - Input (Max) [Max]	300 V
DC Voltage - Input (Min) [Min]	110 V
Efficiency	81 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	23 W
Size / Dimension [x]	2.09 in
Size / Dimension [x]	53 mm
Size / Dimension [y]	36 mm
Size / Dimension [y]	1.42 in
Size / Dimension [z]	3.54 "
Size / Dimension [z]	90 mm
Standard Number	60950-1, UL 508
Voltage - Output 1	12 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Voltage - Input (Min) [Min]	Features	Applications	Voltage - Output 1	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Approval Agency	Current - Output (Max) [Max]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	DC Voltage - Input (Max) [Max]	Power (Watts)	Number of Outputs	Efficiency	Input Type
Siemens 6EP33216SB000AY0	3.54 "	36 mm	90 mm	1.42 in	2.09 in	53 mm	110 V	Adjustable Output IP20 Universal Input	Hazardous Locations Industrial ITE (Commercial)	12 V	240 VAC 264 VAC	85 VAC 100 VAC	CB cCSAus CE CSA cUL cULus UL	1.9 A	60950-1 UL 508	-25 °C	70 °C	300 V	23 W	1	81 %	AC or DC
