EN3P9MRAPCBW

Active

Switchcraft Inc.

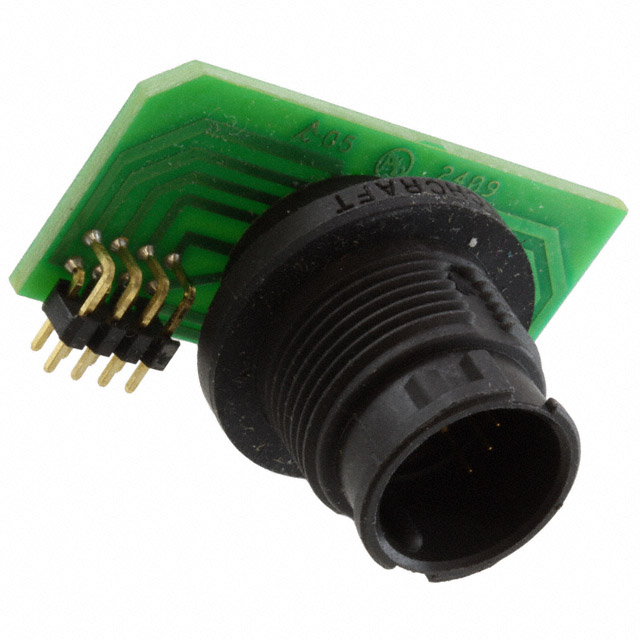

CONN RCPT MALE 9POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 9POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN3P9MRAPCBW	EN3P9M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	9	9
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Primary Material	Insert Material	Contact Finish - Mating	Applications	Contact Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Termination	Mounting Feature	Voltage Rating	Connector Type	Shielding	Current Rating (Amps)	Fastening Type	Orientation	Material Flammability Rating	Mounting Type	Number of Positions
Switchcraft Inc. EN3P9MRAPCBN	Plastic	Elastomer	Gold	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Black	65 °C	-40 °C	IP66/IP68	Circuit Board, Solder	Bulkhead - Front Side Nut	250 VAC	Male Pins, Receptacle	Unshielded	2 A	Bayonet Lock	Keyed	UL94 V-0	Panel Mount, Right Angle, Through Hole	9
Switchcraft Inc. EN3P9MRAPCBW	Plastic	Elastomer	Gold	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Black	65 °C	-40 °C	IP66/IP68	Circuit Board, Solder	Bulkhead - Front Side Nut	250 VAC	Male Pins, Receptacle	Unshielded	2 A	Bayonet Lock	Keyed	UL94 V-0	Panel Mount, Right Angle, Through Hole	9
