1411160

Active

Phoenix Contact

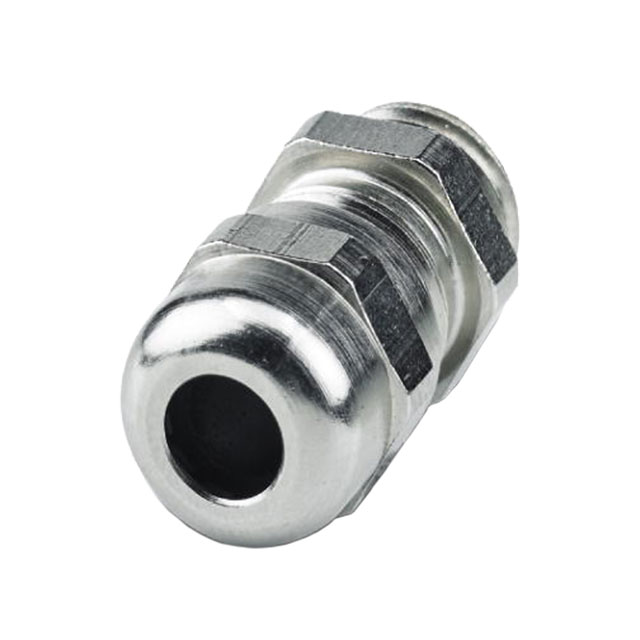

CABLE GLAND 3-6.5MM M12 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 3-6.5MM M12 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411160	G-INS-M12 Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69	IP69, IP66, IP68
Material	Brass, Nickel Plated	Stainless Steel, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in	0.118 in
Thread Length	0.236 in	0.236 in
Thread Length	6 mm	6 mm
Thread Size	M12	M12x1.5, M12
Type	Cable Gland	Cable Gland

CABLE GLAND 3-6.5MM M12 S STEEL

Part	Thread Size	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Material	Color
Phoenix Contact 1424541	M12x1.5	Cable Gland	IP66, IP68, IP69	100 °C	-40 °C	0.236 in	6 mm	3 mm	0.118 in	0.256 "	6.5 mm	O-Ring, Seal	Stainless Steel	Silver
Phoenix Contact 1411160	M12	Cable Gland	IP66, IP68, IP69	100 °C	-40 °C	0.236 in	6 mm	3 mm	0.118 in	0.256 "	6.5 mm	O-Ring, Seal	Brass, Nickel Plated	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.26

General part information

Cable Gland Brass, Nickel Plated M12 Silver
