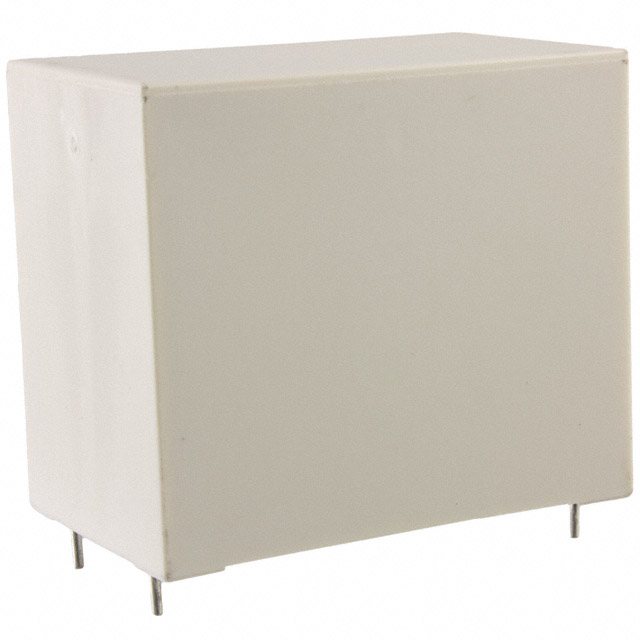

C4AEQBW5270A3NJ

Active

KEMET

CAP FILM 27UF 5% 1.1KVDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Manufacturer Catalogue EN +2

C4AEQBW5270A3NJ

Active

KEMET

CAP FILM 27UF 5% 1.1KVDC RADIAL

Deep-Dive with AI

DocumentsProduct Change Notice EN Manufacturer Catalogue EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4AEQBW5270A3NJ

Applications	Switching, High Frequency, DC Filtering, DC Link
Capacitance	27 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4.9 mOhms
Lead Spacing	1.969 in
Lead Spacing	50 mm
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Size / Dimension [x]	2.264 in
Size / Dimension [x]	57.5 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.378 "
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	1100 V
Voltage Rating - DC	1.1 kV

C4AEQB Series

Part	Capacitance	ESR (Equivalent Series Resistance)	Package / Case	Termination	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Voltage Rating - DC	Voltage Rating - DC	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Applications	Mounting Type
KEMET C4AEQBW5200A3MJ	20 µF	6.5 mOhms	Radial - 4 Leads	PC Pins	1.181 in	30 mm	2.264 in	57.5 mm	45.3 mm	1.783 in	5 %	1100 V	1.1 kV	Metallized Polypropylene (PP)	85 °C	-40 °C	52.5 mm	2.067 in	DC Filtering DC Link High Frequency Switching	Through Hole
KEMET C4AEQBW5100A3JJ	10 µF	6.3 mOhms	Radial	PC Pins	1.102 in	28 mm	1.654 in	42 mm	37.2 mm	1.465 in	5 %	1100 V	1.1 kV	Metallized Polypropylene (PP)	85 °C	-40 °C	37.5 mm	1.476 in	DC Filtering DC Link High Frequency Switching	Through Hole
KEMET C4AEQBU4330A11J	3.3 µF	11.2 mOhms	Radial	PC Pins					29.2 mm	1.15 in	5 %	1100 V	1.1 kV	Metallized Polypropylene (PP)	85 °C	-40 °C	27.5 mm	1.083 in	DC Filtering DC Link High Frequency Switching	Through Hole
KEMET C4AEQBW5120A3LJ	12 µF	5.3 mOhms	Radial - 4 Leads	PC Pins	1.181 in	30 mm	1.654 in	42 mm	45 mm	1.772 in	5 %	1100 V	1.1 kV	Metallized Polypropylene (PP)	85 °C	-40 °C	37.5 mm	1.476 in	DC Filtering DC Link High Frequency Switching	Through Hole
KEMET C4AEQBU4500A12J	5 µF	8.2 mOhms	Radial	PC Pins	0.866 in	22 mm	1.24 in	31.5 mm	37.2 mm	1.465 in	5 %	1100 V	1.1 kV	Metallized Polypropylene (PP)	85 °C	-40 °C	27.5 mm	1.083 in	DC Filtering DC Link High Frequency Switching	Through Hole
KEMET C4AEQBW5270A3NJ	27 µF	4.9 mOhms	Radial	PC Pins	1.378 "	35 mm	2.264 in	57.5 mm			5 %	1100 V	1.1 kV	Metallized Polypropylene (PP)	85 °C	-40 °C	50 mm	1.969 in	DC Filtering DC Link High Frequency Switching	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.75
		23	$ 14.57
		69	$ 12.60
		115	$ 11.34
		506	$ 10.48
		1012	$ 9.85
Newark	Each	100	$ 11.39
		250	$ 11.00
		500	$ 10.22

Description

General part information

C4AEQB Series

27 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial
