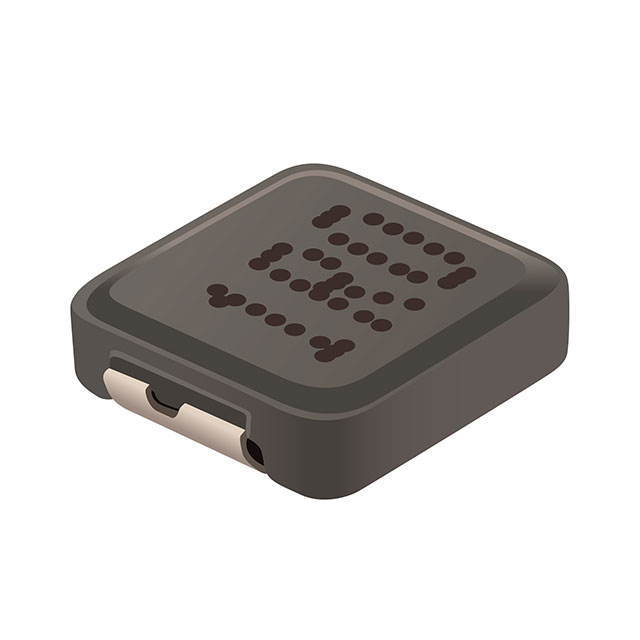

Specification	SRP5015TA-R33M

Current - Saturation (Isat)	16 A
Current Rating	9 A
DC Resistance (DCR) (Max)	9.8 mOhm
Frequency - Self Resonant	120 MHz
Height - Seated (Max)	0.059 in
Inductance	330 nH
Inductance Frequency - Test	100 kHz
Material - Core	Carbonyl Powder
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	Nonstandard
Q	5
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension Length	0.224 in
Size / Dimension Width	0.205 in
Tolerance	20 %
Type	Drum Core, Wirewound

SRP5015TA Series

Part	Ratings	Mounting Type	Size / Dimension Width	Size / Dimension Length	Material - Core	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Package / Case	Current Rating	Q	DC Resistance (DCR) (Max)	Frequency - Self Resonant	Inductance	Type	Height - Seated (Max)	Tolerance	Current - Saturation (Isat)	Inductance Frequency - Test
Bourns Inc. SRP5015TA-R33M	AEC-Q200	Surface Mount	0.205 in	0.224 in	Carbonyl Powder	150 °C	-55 °C	Shielded	Nonstandard	9 A	5	9.8 mOhm	120 MHz	330 nH	Drum Core Wirewound	0.059 in	20 %	16 A	100 kHz
Bourns Inc. SRP5015TA-R20Y	AEC-Q200	Surface Mount	0.205 in	0.224 in	Carbonyl Powder	150 °C	-55 °C	Shielded	Nonstandard	15 A	5	4.2 mOhm	180 MHz	200 nH	Drum Core Wirewound	0.059 in	30 %	22.5 A	100 kHz
Bourns Inc. SRP5015TA-R22Y	AEC-Q200	Surface Mount	0.205 in	0.224 in	Carbonyl Powder	150 °C	-55 °C	Shielded	Nonstandard	12 A	5	6.5 mOhm	165 MHz	220 nH	Drum Core Wirewound	0.059 in	30 %	20 A	100 kHz
Bourns Inc. SRP5015TA-6R8M	AEC-Q200	Surface Mount	0.205 in	0.224 in	Carbonyl Powder	150 °C	-55 °C	Shielded	Nonstandard	2.3 A	10	171 mOhm	24 MHz	6.8 µH	Drum Core Wirewound	0.059 in	20 %	3 A	100 kHz
Bourns Inc. SRP5015TA-4R7M	AEC-Q200	Surface Mount	0.205 in	0.224 in	Carbonyl Powder	150 °C	-55 °C	Shielded	Nonstandard	2.7 A	10	118 mOhm	29 MHz	4.7 µH	Drum Core Wirewound	0.059 in	20 %	4 A	100 kHz
Bourns Inc. SRP5015TA-1R5M	AEC-Q200	Surface Mount	0.205 in	0.224 in	Carbonyl Powder	150 °C	-55 °C	Shielded	Nonstandard	4.5 A	10	45 mOhm	57 MHz	1.5 µH	Drum Core Wirewound	0.059 in	20 %	7 A	100 kHz
Bourns Inc. SRP5015TA-R15Y	AEC-Q200	Surface Mount	0.205 in	0.224 in	Carbonyl Powder	150 °C	-55 °C	Shielded	Nonstandard	16 A	5	4.1 mOhm	220 MHz	150 nH	Drum Core Wirewound	0.059 in	30 %	25 A	100 kHz
Bourns Inc. SRP5015TA-R47M	AEC-Q200	Surface Mount	0.205 in	0.224 in	Carbonyl Powder	150 °C	-55 °C	Shielded	Nonstandard	8 A	5	13.8 mOhm	110 MHz	470 nH	Drum Core Wirewound	0.059 in	20 %	15 A	100 kHz
Bourns Inc. SRP5015TA-1R0M	AEC-Q200	Surface Mount	0.205 in	0.224 in	Carbonyl Powder	150 °C	-55 °C	Shielded	Nonstandard	6 A	10	25.3 mOhm	75 MHz	1 µH	Drum Core Wirewound	0.059 in	20 %	9 A	100 kHz
