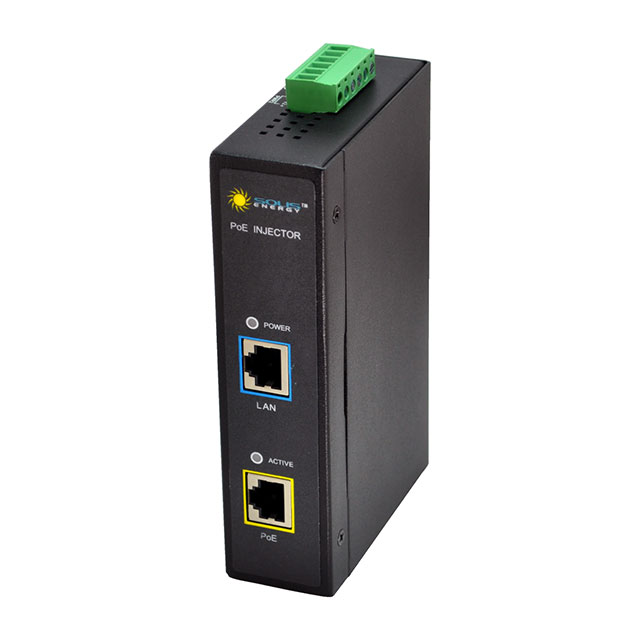

POE-48

Active

American Electrical Inc.

POE INJECTOR 95W

Search across all available documentation for this part.

Active

American Electrical Inc.

POE INJECTOR 95W

Technical Specifications

Parameters and characteristics commom to parts in this series

POE INJECTOR 33W

Part	Data Rate	Output Connector	Features	Input Connector	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Compliance	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts) - Per Port	Type	Mounting Type
American Electrical Inc. POE-24	10 Mbps, 100 Mbps, 1000 Mbps	RJ45 (Data, Power)	OCP	RJ45 (Data), Terminal Block (Power)	1	65 °C	-40 °C	IEEE802.3af, IEEE802.3at	115 mm	75 mm	4.53 "	2.95 in	1.26 in	32 mm	10 V	30 V	33 W	Midspan Injector	DIN Rail
American Electrical Inc. POE-48	10 Mbps, 100 Mbps, 1000 Mbps	RJ45 (Data, Power)	OCP	RJ45 (Data), Terminal Block (Power)	1	65 °C	-40 °C	IEEE802.3bt	115 mm	75 mm	4.53 "	2.95 in	1.26 in	32 mm	44 V	57 V	95 W	Midspan Injector	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
