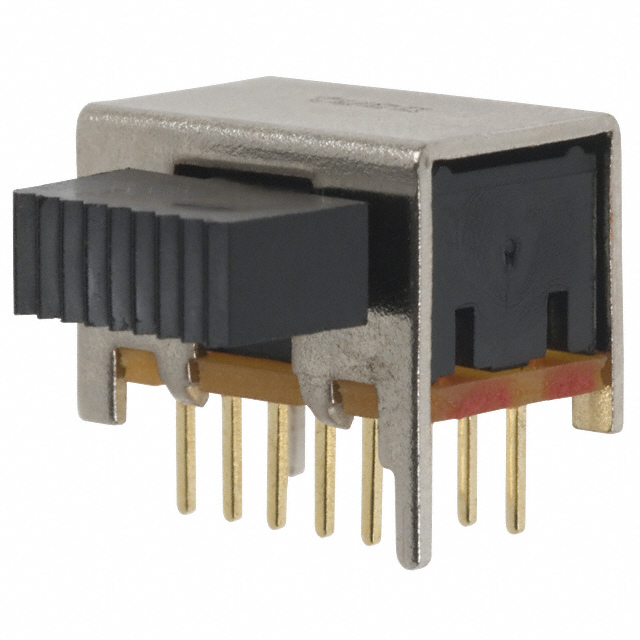

MSS4200RG

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE 4PDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MSS4200RG

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE 4PDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSS4200RG

Actuator Length [x]	7 mm
Actuator Material	Polyoxymethylene (Acetal) (POM)
Actuator Type	Standard
Circuit	4PDT
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Shorting
Current Rating (Amps)	0.4 VA
Electrical Life	15000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	15000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	600 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Switch Travel	2 mm
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

MSS4 Series

Part	Termination Style	Electrical Life	Mounting Type	Actuator Length [x]	Contact Material	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Operating Force	Features	Switch Travel	Voltage Rating - AC	Actuator Type	Current Rating (Amps)	Contact Finish	Contact Timing	Switch Function	Mechanical Life	Voltage Rating - DC
TE Connectivity Raychem Cable Protection MSS4300	PC Pin	15000 Cycles	Through Hole	5.5 mm	Copper Alloy	Polyoxymethylene (Acetal) (POM)	85 °C	-20 C	4P3T	600 gf	Epoxy Sealed Terminals	2 mm	125 V	Standard	300 mA	Silver	Shorting	On-On-On	15000 Cycles
TE Connectivity Raychem Cable Protection MSS4200	PC Pin	15000 Cycles	Through Hole	8 mm	Copper Alloy	Polyoxymethylene (Acetal) (POM)	85 °C	-20 C	4PDT	600 gf	Epoxy Sealed Terminals	2 mm	125 V	Standard	300 mA	Silver	Shorting	On-On	15000 Cycles
TE Connectivity Raychem Cable Protection MSS4350RG	PC Pin	15000 Cycles	Through Hole Right Angle	14 mm	Copper Alloy	Polyoxymethylene (Acetal) (POM)	85 °C	-20 C	4P3T	600 gf	Epoxy Sealed Terminals	2 mm	20 V	Standard	0.4 VA	Gold	Shorting	On-On-On	15000 Cycles	20 V
TE Connectivity Raychem Cable Protection MSS4200RG	PC Pin	15000 Cycles	Through Hole Right Angle	7 mm	Copper Alloy	Polyoxymethylene (Acetal) (POM)	85 °C	-20 C	4PDT	600 gf	Epoxy Sealed Terminals	2 mm	20 V	Standard	0.4 VA	Gold	Shorting	On-On	15000 Cycles	20 V
TE Connectivity Raychem Cable Protection MSS4250	PC Pin	15000 Cycles	Through Hole	12 mm	Copper Alloy	Polyoxymethylene (Acetal) (POM)	85 °C	-20 C	4PDT	600 gf	Epoxy Sealed Terminals	2 mm	125 V	Standard	300 mA	Silver	Shorting	On-On	15000 Cycles
TE Connectivity Raychem Cable Protection MSS4335	PC Pin	15000 Cycles	Through Hole	9 mm	Copper Alloy	Polyoxymethylene (Acetal) (POM)	85 °C	-20 C	4P3T	600 gf	Epoxy Sealed Terminals	2 mm	125 V	Standard	300 mA	Silver	Shorting	On-On-On	15000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MSS4 Series

Slide Switch 4PDT Through Hole, Right Angle
