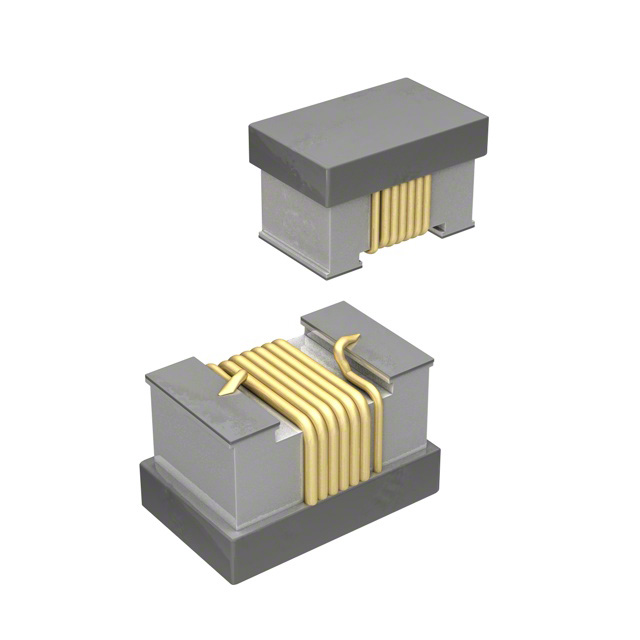

CW160808-15NG

Active

Bourns Inc.

FIXED IND 15NH 700MA 170MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CW160808-15NG

Active

Bourns Inc.

FIXED IND 15NH 700MA 170MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CW160808-15NG

Current Rating (Amps)	700 mA
DC Resistance (DCR)	170 mOhm
Frequency - Self Resonant	4 GHz
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Inductance	15 nH
Inductance Frequency - Test	250 MHz
Material - Core	Alumina
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603 (1608 Metric)
Q @ Freq	250 MHz, 30
Shielding	Unshielded
Size / Dimension [x]	1.65 mm, 0.065 in
Size / Dimension [y]	0.041 in, 1.05 mm
Supplier Device Package	1608 Metric
Supplier Device Package	0603
Tolerance	2 %
Type	Wirewound, Drum Core

CW160808 Series

Part	Package / Case	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Type	Tolerance	Inductance Frequency - Test	Material - Core	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Supplier Device Package	Frequency - Self Resonant	Current Rating (Amps)	Mounting Type	Q @ Freq	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)
Bourns Inc. CW160808-82NG	0603 (1608 Metric)	Unshielded	125 °C	-40 °C	Drum Core Wirewound	2 %	150 MHz	Alumina	82 nH	1.2 mm	0.047 in	1608 Metric	0603	1.7 GHz	400 mA	Surface Mount	34 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm
Bourns Inc. CW160808-12NG	0603 (1608 Metric)	Unshielded	125 °C	-40 °C	Drum Core Wirewound	2 %	250 MHz	Alumina	12 nH	1.2 mm	0.047 in	1608 Metric	0603	4 GHz	700 mA	Surface Mount	30 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm	130 mOhm
Bourns Inc. CW160808-68NG	0603 (1608 Metric)	Unshielded	125 °C	-40 °C	Drum Core Wirewound	2 %	200 MHz	Alumina	68 nH	1.2 mm	0.047 in	1608 Metric	0603	1.7 GHz	600 mA	Surface Mount	35 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm	340 mOhm
Bourns Inc. CW160808-R10J	0603 (1608 Metric)	Unshielded	125 °C	-40 °C	Drum Core Wirewound	5 %	150 MHz	Alumina	100 nH	1.2 mm	0.047 in	1608 Metric	0603	1.4 GHz	400 mA	Surface Mount	34 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm	710 mOhm
Bourns Inc. CW160808-47NJ	0603 (1608 Metric)	Unshielded	125 °C	-40 °C	Drum Core Wirewound	5 %	200 MHz	Alumina	47 nH	1.2 mm	0.047 in	1608 Metric	0603	2.1 GHz	600 mA	Surface Mount	35 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm	280 mOhm
Bourns Inc. CW160808-3N9G	Nonstandard	Unshielded	125 °C	-40 °C	Drum Core Wirewound	2 %	250 MHz	Alumina	3.9 nH	1.2 mm	0.047 in			6 GHz	700 mA	Surface Mount	16 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm	80 mOhm
Bourns Inc. CW160808-10NJ	0603 (1608 Metric)	Unshielded	125 °C	-40 °C	Drum Core Wirewound	5 %	250 MHz	Alumina	10 nH	1.2 mm	0.047 in	1608 Metric	0603	4.8 GHz	700 mA	Surface Mount	30 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm	130 mOhm
Bourns Inc. CW160808-18NG	0603 (1608 Metric)	Unshielded	125 °C	-40 °C	Drum Core Wirewound	2 %	250 MHz	Alumina	18 nH	1.2 mm	0.047 in	1608 Metric	0603	3.1 GHz	700 mA	Surface Mount	30 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm	170 mOhm
Bourns Inc. CW160808-27NJ	0603 (1608 Metric)	Unshielded	125 °C	-40 °C	Drum Core Wirewound	5 %	250 MHz	Alumina	27 nH	1.2 mm	0.047 in	1608 Metric	0603	2.8 GHz	600 mA	Surface Mount	35 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm	220 mOhm
Bourns Inc. CW160808-15NG	0603 (1608 Metric)	Unshielded	125 °C	-40 °C	Drum Core Wirewound	2 %	250 MHz	Alumina	15 nH	1.2 mm	0.047 in	1608 Metric	0603	4 GHz	700 mA	Surface Mount	30 250 MHz	0.041 in 1.05 mm	0.065 in 1.65 mm	170 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.17

Description

General part information

CW160808 Series

15 nH Unshielded Drum Core, Wirewound Inductor 700 mA 170mOhm 0603 (1608 Metric)
