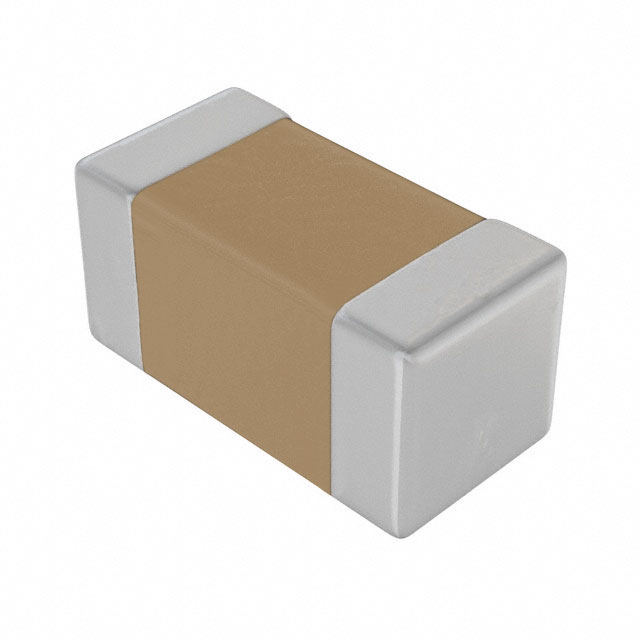

L0402C10NJRMST
ObsoleteKEMET
GENERAL PURPOSE INDUCTOR, 0.01UH, 5%, 1 ELEMENT, CERAMIC-CORE, SMD, 0402, CHIP, 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L0402C10NJRMST
ObsoleteKEMET
GENERAL PURPOSE INDUCTOR, 0.01UH, 5%, 1 ELEMENT, CERAMIC-CORE, SMD, 0402, CHIP, 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L0402C10NJRMST |
|---|---|
| Current Rating (Amps) | 300 mA |
| DC Resistance (DCR) [Max] | 310 mOhm |
| Frequency - Self Resonant | 4.3 GHz |
| Height - Seated (Max) | 0.45 mm |
| Height - Seated (Max) [Max] [z] | 0.018 " |
| Inductance | 10 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Q @ Freq | 10, 100 MHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.039 in |
| Size / Dimension [y] | 0.58 mm |
| Size / Dimension [y] | 0.023 in |
| Supplier Device Package | 0402 (1005 Metric) |
| Tolerance | 5 % |
| Type | Multilayer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.03 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.03 | |||
Description
General part information
L0402C Series
10 nH Unshielded Multilayer Inductor 300 mA 310mOhm Max 0402 (1005 Metric)
