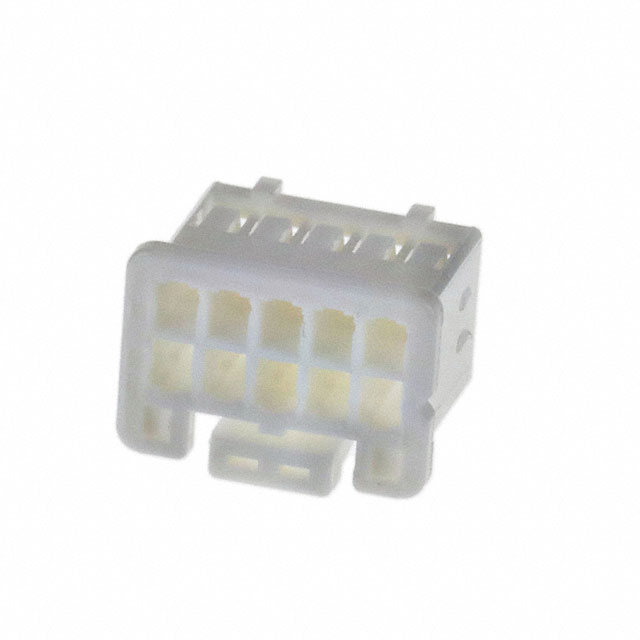

PUDP-10V-S

Active

JST Sales America Inc.

CONN RCPT HSG 10POS 2.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 10POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	PUDP-10V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Color	Connector Type	Mounting Type	Insulation Material	Number of Positions	Row Spacing	Row Spacing	Contact Type	Note	Contact Termination	Fastening Type	Pitch [x]	Pitch [x]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. PUDP-10V-S	Natural	Receptacle	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	10	2 mm	0.079 in	Female Socket	Contacts Not Included	Crimp	Latch Lock	0.079 in	2 mm	2	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
