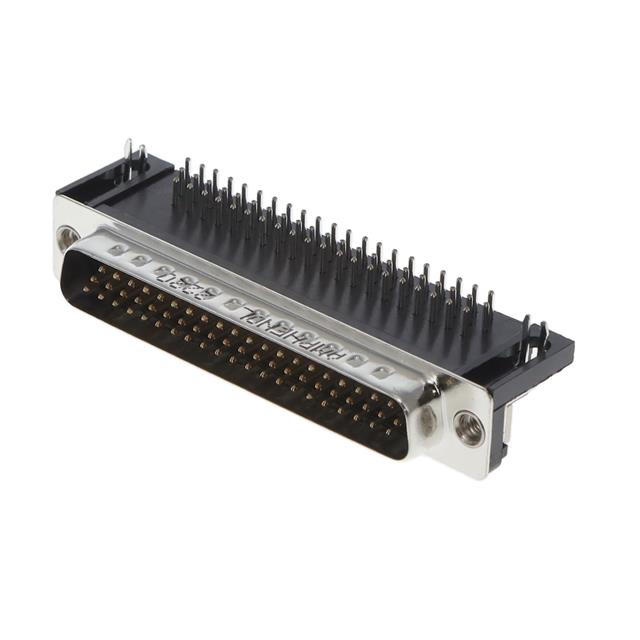

L717HDC62PD1CH3R

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 62P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717HDC62PD1CH3R

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 62P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717HDC62PD1CH3R

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Tabs, Board Lock, Grounding Indents
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	250 VDC

L717HDC62 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Number of Rows	Termination	Color	Current Rating (Amps)	Number of Positions	Connector Type	Voltage Rating	Mounting Type	Material Flammability Rating	Shell Size, Connector Layout	Flange Feature	Features	Contact Type	Contact Material	Contact Finish	Backset Spacing	Backset Spacing	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717HDC62POL2C309	0.76 Ám	30 Áin	D-Sub High Density	Stamped	105 ░C	-55 °C	Thermoplastic Glass Filled	3	Solder	Black	3 A	62	Male Pins Plug	250 VDC	Through Hole	UL94 V-0	4	Housing/Shell (Unthreaded)	Grounding Indents	Signal	Brass	Gold
Amphenol ICC (Commercial Products) L717HDC62PD1CH3RC309	0.76 Ám	30 Áin	D-Sub High Density	Stamped	105 ░C	-55 °C	Thermoplastic Glass Filled	3	Solder	Black	3 A	62	Male Pins Plug	250 VDC	Through Hole Right Angle	UL94 V-0	4	Board Side (M3)	Board Lock Grounding Indents Grounding Tabs	Signal	Brass	Gold	8.89 mm	0.35 in
Amphenol ICC (Commercial Products) L717HDC62PVFMC309	0.76 Ám	30 Áin	D-Sub High Density	Stamped	155 °C	-55 °C	Thermoplastic Glass Filled	3			3 A	62	Male Pins Plug	250 VDC	Free Hanging (In-Line)	UL94 V-0	4	Female Screwlock (M3) Mating Side	Grounding Indents	Signal	Brass	Gold
Amphenol ICC (Commercial Products) L717HDC62PD1CH3FC309	0.76 Ám	30 Áin	D-Sub High Density	Stamped	105 ░C	-55 °C	Thermoplastic Glass Filled	3	Solder	Black	3 A	62	Male Pins Plug	250 VDC	Through Hole Right Angle	UL94 V-0	4	Female Screwlock (M3) Mating Side	Board Lock Grounding Indents Grounding Tabs	Signal	Brass	Gold	8.89 mm	0.35 in
Amphenol ICC (Commercial Products) L717HDC62PD1CH3F			D-Sub High Density	Stamped	105 ░C	-55 °C	Thermoplastic Glass Filled	3	Solder	Black	3 A	62	Male Pins Plug	250 VDC	Through Hole Right Angle	UL94 V-0	4	Female Screwlock (M3) Mating Side	Board Lock Grounding Indents Grounding Tabs	Signal	Brass	Gold	8.89 mm	0.35 in	Flash
Amphenol ICC (Commercial Products) L717HDC62PD1CH4R			D-Sub High Density	Stamped	105 ░C	-55 °C	Thermoplastic Glass Filled	3	Solder	Black	3 A	62	Male Pins Plug	250 VDC	Through Hole Right Angle	UL94 V-0	4	4-40 Board Side	Board Lock Grounding Indents Grounding Tabs	Signal	Brass	Gold	8.89 mm	0.35 in	Flash
Amphenol ICC (Commercial Products) L717HDC62POL2			D-Sub High Density	Stamped	105 ░C	-55 °C	Thermoplastic Glass Filled	3	Solder	Black	3 A	62	Male Pins Plug	250 VDC	Through Hole	UL94 V-0	4	Housing/Shell (Unthreaded)	Grounding Indents	Signal	Brass	Gold			Flash
Amphenol ICC (Commercial Products) L717HDC62PC309	0.76 Ám	30 Áin	D-Sub High Density	Stamped	155 °C	-55 °C	Thermoplastic Glass Filled	3			3 A	62	Male Pins Plug	250 VDC	Free Hanging (In-Line)	UL94 V-0	4	Housing/Shell (Unthreaded)	Grounding Indents	Signal	Brass	Gold
Amphenol ICC (Commercial Products) L717HDC62PD1CH3R			D-Sub High Density	Stamped	105 ░C	-55 °C	Thermoplastic Glass Filled	3	Solder	Black	3 A	62	Male Pins Plug	250 VDC	Through Hole Right Angle	UL94 V-0	4	Board Side (M3)	Board Lock Grounding Indents Grounding Tabs	Signal	Brass	Gold	8.89 mm	0.35 in	Flash
Amphenol ICC (Commercial Products) L717HDC62PD1CH4F			D-Sub High Density	Stamped	105 ░C	-55 °C	Thermoplastic Glass Filled	3	Solder	Black	3 A	62	Male Pins Plug	250 VDC	Through Hole Right Angle	UL94 V-0	4	Female Screwlock (4-40) Mating Side	Board Lock Grounding Indents Grounding Tabs	Signal	Brass	Gold	8.89 mm	0.35 in	Flash
