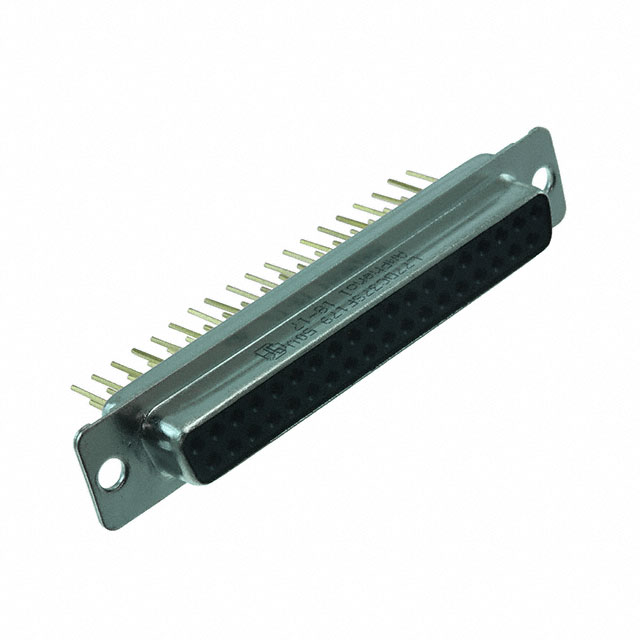

L77DC37SF179

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 37POS PNL MNT WW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77DC37SF179

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 37POS PNL MNT WW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77DC37SF179

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Wire Wrap
Voltage Rating	300 VDC

L77DC37 Series

Part	Mounting Type	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Shell Size, Connector Layout	Dielectric Material	Contact Finish	Color	Material Flammability Rating	Number of Rows	Termination	Voltage Rating	Number of Positions	Connector Type	Flange Feature	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Backset Spacing	Backset Spacing	Features
Amphenol ICC (Commercial Products) L77DC37SOL2A104	Through Hole	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Solder	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal
Amphenol ICC (Commercial Products) L77DC37S1AON	Through Hole Right Angle	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Solder	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DC37SAM4B	Through Hole Right Angle	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Solder	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal	0.59 "	14.99 mm	Mounting Brackets
Amphenol ICC (Commercial Products) L77DC37SOL2R063	Through Hole	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Solder	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal
Amphenol ICC (Commercial Products) L77DC37SOL2	Through Hole	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Solder	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal
Amphenol ICC (Commercial Products) L77DC37SOL2RM8	Through Hole	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Solder	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal
Amphenol ICC (Commercial Products) L77DC37SF179	Panel Mount Through Hole	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Wire Wrap	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal
Amphenol ICC (Commercial Products) L77DC37SU	Through Hole	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Solder	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal
Amphenol ICC (Commercial Products) L77DC37S1BON	Through Hole Right Angle	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Solder	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DC37S1ATN	Through Hole Right Angle	7.5 A	8 çin	0.203 çm	Brass	4 (DC C)	Thermoplastic Glass Filled	Gold	Black	UL94 V-0	2	Solder	300 VDC	37	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub	-55 °C	125 °C	Signal	0.406 in	10.3 mm	Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.37
		10	$ 9.19
		25	$ 8.84
		50	$ 8.49
		100	$ 8.30

Description

General part information

L77DC37 Series

37 Position D-Sub Receptacle, Female Sockets Connector
