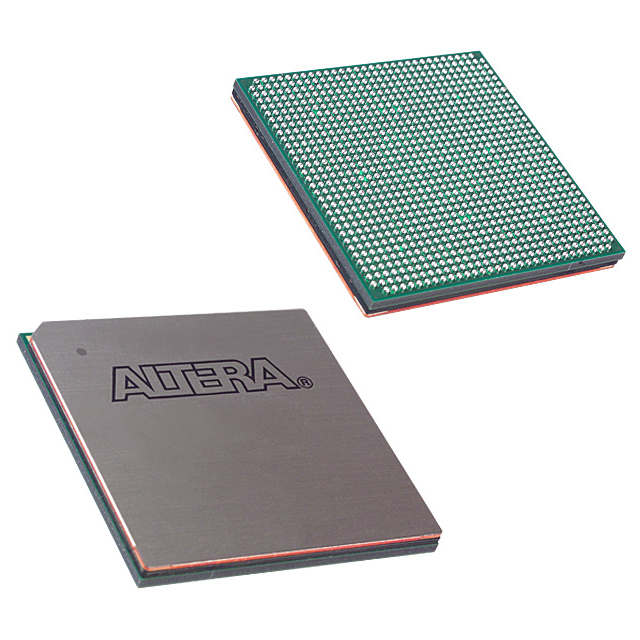

EP1SGX25DF1020C5

Obsolete

Altera

FPGA STRATIX® GX FAMILY 25660 CELLS 5000MHZ 130NM TECHNOLOGY 1.5V 1020-PIN FC-FBGA

Search across all available documentation for this part.

Obsolete

Altera

FPGA STRATIX® GX FAMILY 25660 CELLS 5000MHZ 130NM TECHNOLOGY 1.5V 1020-PIN FC-FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP1SGX25DF1020C5

Mounting Type	Surface Mount
Number of I/O	607
Number of LABs/CLBs	2566
Number of Logic Elements/Cells	25660
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	1020-BBGA
Supplier Device Package	1020-FBGA (33x33)
Total RAM Bits	1944576 bits
Voltage - Supply [Max]	1.575 V
Voltage - Supply [Min]	1.425 V

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Total RAM Bits	Number of LABs/CLBs	Number of Logic Elements/Cells	Number of I/O	Supplier Device Package
Altera EP1SGX25DF672C6	Surface Mount	1.575 V	1.425 V	0 °C	85 °C	672-BBGA	1944576 bits	2566	25660	455
Altera EP1SGX25FF1020C6N	Surface Mount	1.575 V	1.425 V	0 °C	85 °C	1020-BBGA				607	1020-FBGA (33x33)
Altera EP1SGX25DF672C7N	Surface Mount	1.575 V	1.425 V	0 °C	85 °C	672-BBGA FCBGA	1944576 bits	2566	25660	455
Altera EP1SGX25DF1020C5	Surface Mount	1.575 V	1.425 V	0 °C	85 °C	1020-BBGA	1944576 bits	2566	25660	607	1020-FBGA (33x33)
Altera EP1SGX25CF672I6N	Surface Mount	1.575 V	1.425 V	-40 C	100 °C	672-BBGA FCBGA				455
Altera EP1SGX25CF672C5	Surface Mount	1.575 V	1.425 V	0 °C	85 °C	672-BBGA FCBGA				455
Altera EP1SGX25CF672C7	Surface Mount	1.575 V	1.425 V	0 °C	85 °C	672-BBGA	1944576 bits	2566	25660	455
Altera EP1SGX25CF672C7	Surface Mount	1.575 V	1.425 V	0 °C	85 °C	672-BBGA FCBGA				455

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stratix® GX Field Programmable Gate Array (FPGA) IC 607 1944576 25660 1020-BBGA
