6ED10521FB080BA0

Obsolete

Siemens

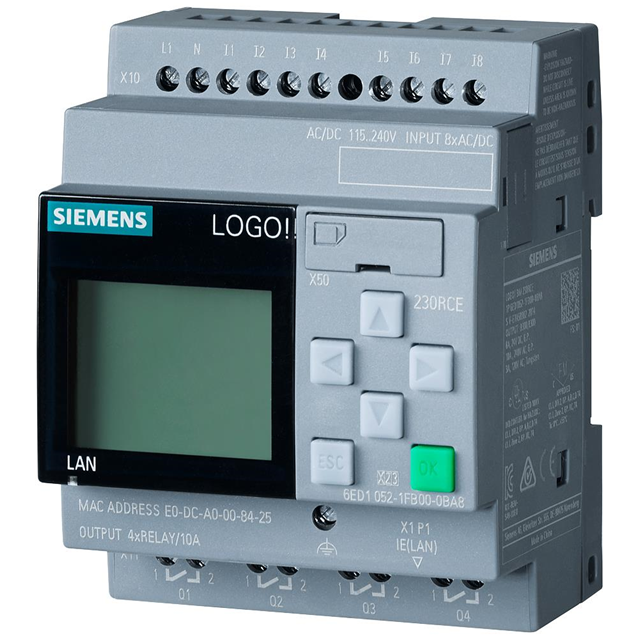

LOGO 230RCE. 8DI/4DO. 400 BLOCKS

Search across all available documentation for this part.

Obsolete

Siemens

LOGO 230RCE. 8DI/4DO. 400 BLOCKS

Technical Specifications

Parameters and characteristics for this part

Specification	6ED10521FB080BA0

Communications	Ethernet
Number of Inputs and Type [custom]	8
Number of Inputs and Type [custom]	Digital
Number of Outputs and Type [custom]	4
Number of Outputs and Type [custom]	Relay
Software	LOGO! SOFT Comfort
Voltage - Supply [Max]	230 VAC
Voltage - Supply [Min]	115 VAC

Part	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Approval Agency	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Software	Voltage - Supply	Communications	Mounting Type	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Outputs and Type [custom]
Siemens 6ED10521CC080BA2	4	4	CE FM UL	4	Solid State	55 °C	-20 C	Soft Comfort 8.2	24 VDC	Ethernet	DIN Rail
Siemens 6ED10521MD080BA1			CE CSA UL	4		55 °C	-20 C	LOGO! SOFT Comfort			DIN Rail	8	Digital	28.8 VDC	10.8 VDC	Relay
Siemens 6ED10521CC080BA1			CE CSA FM UL	4	Solid State	55 °C	-20 C	LOGO! SOFT Comfort		Ethernet	DIN Rail	8	Digital	28.8 VDC	20.4 V
Siemens 6ED10521FB080BA1			CE CSA FM UL	4		55 °C	-20 C			Ethernet	DIN Rail	8	Digital	253 VDC	100 VDC	Relay
Siemens 6ED10521FB080BA2
Siemens 6ED10521MD080BA2
Siemens 6ED10521HB080BA0			CE CSA UL	4		55 °C	-20 C	LOGO! SOFT Comfort		Ethernet	DIN Rail	8	Digital	28.8 VDC	20.4 V	Relay
Siemens 6ED10521FB080BA0				4				LOGO! SOFT Comfort		Ethernet		8	Digital	230 VAC	115 VAC	Relay
Siemens 6ED10521HB080BA1			CE CSA UL	4		55 °C	-20 C			Ethernet	DIN Rail	8	Digital	28.8 VDC	20.4 V	Relay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Programmable Logic Controller (PLC) 115/230VAC
