2-1376392-3

Active

TE Connectivity AMP Connectors

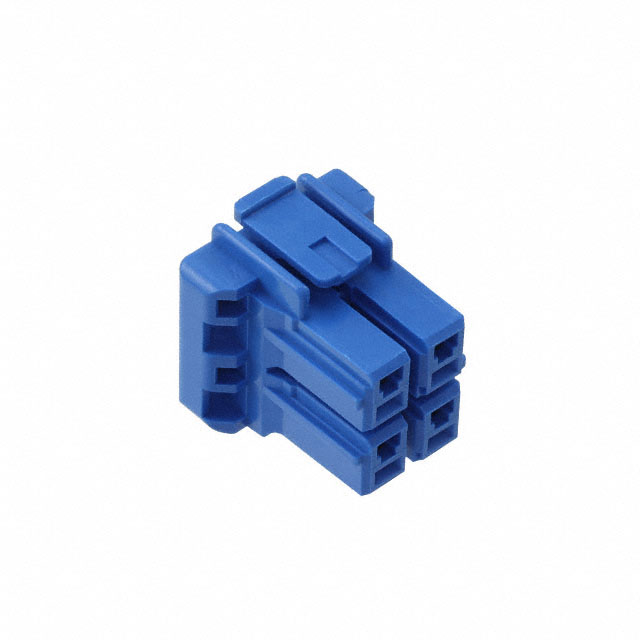

CONN PLUG HSG 4POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 4POS 5.00MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Blue 0.197" (5.00mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2-1376392-3	1376392 Series

Color	Blue	Blue, Yellow, Red, Natural
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Holder	Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 - -30 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Row Spacing	6.2 mm	6.2 mm
Row Spacing	0.244 in	0.244 in

CONN PLUG HSG 4POS 5.00MM

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Material	Row Spacing	Row Spacing	Color	Contact Termination	Note	Contact Type	Fastening Type	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows
TE Connectivity AMP Connectors 2-1376392-3	Free Hanging (In-Line)	-40 °C	105 ░C	Plug	Polyamide (PA66), Nylon 6/6	6.2 mm	0.244 in	Blue	Crimp	Contacts Not Included	Female Socket	Latch Holder	5 mm	0.197 in	4	2
TE Connectivity AMP Connectors 3-1376392-4	Free Hanging (In-Line)	-40 °C	105 ░C	Plug	Polyamide (PA66), Nylon 6/6	6.2 mm	0.244 in	Yellow	Crimp	Contacts Not Included	Female Socket	Latch Holder	5 mm	0.197 in	4	2
TE Connectivity AMP Connectors 1-1376392-2	Free Hanging (In-Line)	-30 ░C	105 ░C	Plug	Polyamide (PA66), Nylon 6/6, Glass Filled	6.2 mm	0.244 in	Red	Crimp	Contacts Not Included	Female Socket	Latch Holder	5 mm	0.197 in	4	2
TE Connectivity AMP Connectors 1376392-1	Free Hanging (In-Line)	-30 ░C	105 ░C	Plug	Polyamide (PA66), Nylon 6/6, Glass Filled	6.2 mm	0.244 in	Natural	Crimp	Contacts Not Included	Female Socket	Latch Holder	5 mm	0.197 in	4	2
