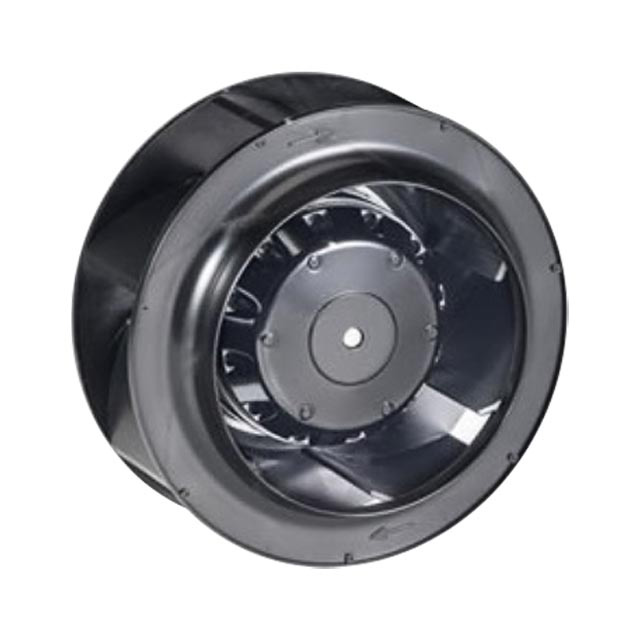

OAB13372-11-1WB

Active

Orion Fans

FAN IMP MTRZD 133X72MM 115VAC W/

Search across all available documentation for this part.

Active

Orion Fans

FAN IMP MTRZD 133X72MM 115VAC W/

Technical Specifications

Parameters and characteristics for this part

Specification	OAB13372-11-1WB

Air Flow	5.26 m³/min
Air Flow	188 CFM
Bearing Type	Ball
Current Rating (Amps)	430 mA
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	40000 Hrs
Material - Blade	Thermoplastic
Material - Frame	Aluminum
Noise	60 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	41 W
RPM	3200 RPM
Size / Dimension [diameter]	133 mm
Static Pressure	0.88 in H2O
Static Pressure	219.2 Pa
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Weight	907.2 g
Weight	2 lbs
Width [y]	72.5 mm

Part	Ingress Protection	Current Rating (Amps)	Size / Dimension [diameter]	Features	Material - Frame	Width [y]	Material - Blade	Air Flow	Air Flow	Voltage - Rated	RPM	Fan Type	Termination	Weight	Weight	Lifetime @ Temp.	Static Pressure	Static Pressure	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Bearing Type
Orion Fans OAB13372-11-1WB	IP55 - Dust Protected Water Resistant	430 mA	133 mm	Thermal Overload Protector (TOP)	Aluminum	72.5 mm	Thermoplastic	5.26 m³/min	188 CFM	115 VAC	3200 RPM	Motorized Impellers	2 Wire Leads	907.2 g	2 lbs	40000 Hrs	0.88 in H2O	219.2 Pa	41 W	60 °C	60 °C	-40 °C	-40 °C	60 dB(A)	Ball
Orion Fans OAB13372-22-1WB	IP55 - Dust Protected Water Resistant	0.21 A	133 mm	Thermal Overload Protector (TOP)	Aluminum	72.5 mm	Thermoplastic	5.26 m³/min	188 CFM	230 VAC	3200 RPM	Motorized Impellers	2 Wire Leads	907.2 g	2 lbs	40000 Hrs	0.88 in H2O	219.2 Pa	39 W	60 °C	60 °C	-40 °C	-40 °C	60 dB(A)	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	18	$ 75.71

General part information

Fan Motorized Impellers 115VAC Round - 133mm Dia Ball 188.0 CFM (5.26m³/min) 2 Wire Leads
