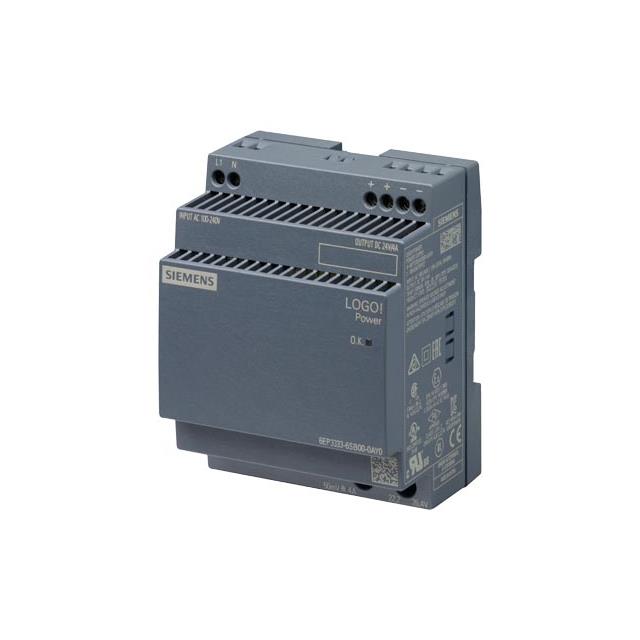

6EP33336SB000AY0

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 96W

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 96W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP33336SB000AY0

AC Voltage - Input [Max]	264 VAC, 240 VAC
AC Voltage - Input [Min]	85 VAC, 100 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	EAC, CB, cURus, CE, cULus
Current - Output (Max) [Max]	4 A
DC Voltage - Input (Max) [Max]	300 V
DC Voltage - Input (Min) [Min]	110 V
Efficiency	89 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	96 W
Size / Dimension [x]	53 mm
Size / Dimension [x]	2.09 in
Size / Dimension [y]	2.83 "
Size / Dimension [y]	72 mm
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 in
Standard Number	508
Voltage - Output 1	24 V

Part	Applications	Input Type	Efficiency	Current - Output (Max) [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	DC Voltage - Input (Max) [Max]	Number of Outputs	DC Voltage - Input (Min) [Min]	Standard Number	Approval Agency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Features
Siemens 6EP33336SB000AY0	Hazardous Locations Industrial ITE (Commercial)	AC or DC	89 %	4 A	240 VAC 264 VAC	85 VAC 100 VAC	53 mm	2.83 "	90 mm	72 mm	3.54 in	2.09 in	96 W	300 V	1	110 V	508	CB CE cULus cURus EAC	24 V	70 °C	-25 °C	Adjustable Output IP20 Universal Input
Siemens 6EP33336SC000AY0	ITE (Commercial)	AC or DC	89 %	4 A	264 VAC	85 VAC	53 mm	2.83 "	90 mm	72 mm	3.54 in	2.09 in	96 W	300 V	1	110 V	60950-1	CE	24 V	70 °C	-25 °C	Adjustable Output
