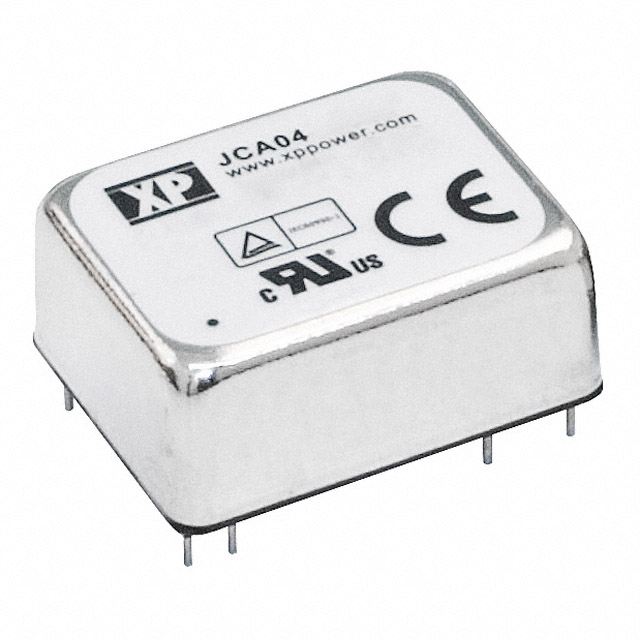

JCA0405S03
ActiveXP POWER
DIP,25.4X20.3MM ISOLATED POWER MODULES ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JCA0405S03 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.22 A |
| Efficiency | 80 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 7 Leads |
| Power (Watts) | 4 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 10 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
JCA0405 Series
| Part | Type | Voltage - Output 1 | Mounting Type | Current - Output (Max) | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Power (Watts) | Package / Case | Voltage - Output 2 | Applications | Efficiency | Voltage - Isolation | Features | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Current - Output (Max) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XP POWER | Isolated Module | 12 V | Through Hole | 170 mA | 170 mA | 100 °C | -40 °C | 62368-1 | 4 W | 24-DIP Module 8 Leads | -12 V | ITE (Commercial) | 83 % | 1.5 kV | OCP OVP SCP UVLO | 0.39 in | 10 mm | 0.8 in | 25.4 mm | 20.3 mm | 1 in | 4.5 V | 2 | 9 V | ||
XP POWER | Isolated Module | 3.3 V | Through Hole | 100 °C | -40 °C | 62368-1 | 4 W | 24-DIP Module 7 Leads | ITE (Commercial) | 80 % | 1.5 kV | OCP OVP SCP UVLO | 0.39 in | 10 mm | 0.8 in | 25.4 mm | 20.3 mm | 1 in | 4.5 V | 1 | 9 V | 1.22 A | ||||
XP POWER | Isolated Module | 15 V | Through Hole | 100 °C | -40 °C | 62368-1 | 4 W | 24-DIP Module 8 Leads | -15 V | ITE (Commercial) | 83 % | 1.5 kV | OCP OVP SCP UVLO | 0.39 in | 10 mm | 0.8 in | 25.4 mm | 20.3 mm | 1 in | 4.5 V | 2 | 9 V | 140 mA | 140 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JCA0405 Series
Isolated Module DC DC Converter 1 Output 3.3V 1.22A 4.5V - 9V Input
