L1.25-3
ActiveJST Sales America Inc.

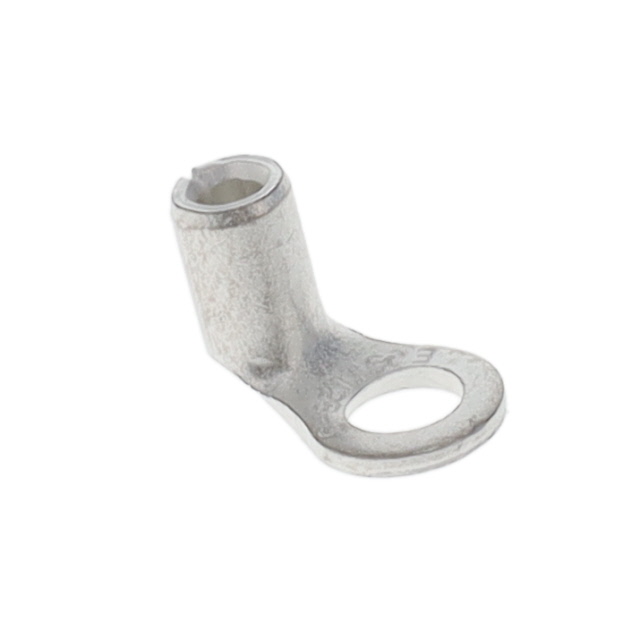

RING TONGUE TERMINAL
Deep-Dive with AI
Search across all available documentation for this part.
L1.25-3
ActiveJST Sales America Inc.
RING TONGUE TERMINAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L1.25-3 |
|---|---|
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Stud/Tab Size | M3 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Thickness | 0.79 mm |
| Width - Outer Edges [y] | 5.5 mm |
| Width - Outer Edges [y] | 0.217 in |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.24 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.11 | |||
| 5000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
Description
General part information
L1.25 Series
Ring Terminal Connector M3 Stud Circular 16-22 AWG Crimp
