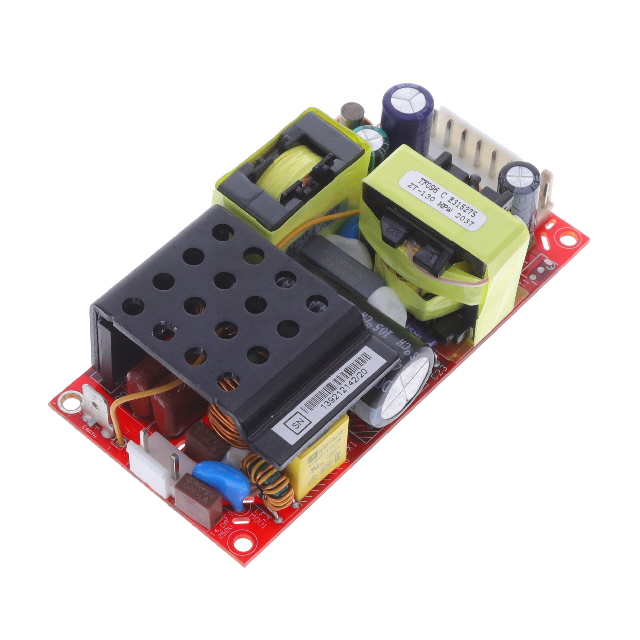

Specification	GTM962250P22520A-F

Applications	Medical, ITE (Commercial), Household Appliances
Approval Agency	VCCI, UKRSepro, EAC, CE, CB, cETLus
Current - Output 1	7 A
Efficiency	95 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	225 W, 140 W
Size / Dimension Height	1.18 in
Size / Dimension Length	4 in
Size / Dimension Width	2 in
Standard Number	62368-1, 60335-1, 60950-1, 60601-1
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	4000 Vpk
Voltage - Output 1	20 V

GTM962250 Series

Part	Mounting Type	Applications	Voltage - Output 1	Power (Watts)	Type	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output 1	Approval Agency	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Isolation	Features	Number of Outputs	Efficiency	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Standard Number	Minimum Load Required
GlobTek, Inc. GTM962250P22519A-F	Chassis Mount	Household Appliances ITE (Commercial) Medical	19 V	225 W	Open Frame	80 °C	-25 °C	11.84 A	CB CE cETLus EAC UKRSepro VCCI	4 in	2 in	1.18 in	4000 Vpk	Universal Input	1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1	No
GlobTek, Inc. GTM962250P22554A-F	Chassis Mount	Household Appliances ITE (Commercial) Medical	54 V	225 W	Open Frame	80 °C	-25 °C	4.17 A	CB CE cETLus EAC UKRSepro VCCI	4 in	2 in	1.18 in	4000 Vpk	Universal Input	1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1	No
GlobTek, Inc. GTM962250P22518A-F	Chassis Mount	Household Appliances ITE (Commercial) Medical	18 V	225 W	Open Frame	80 °C	-25 °C	12.5 A	CB CE cETLus EAC UKRSepro VCCI	4 in	2 in	1.18 in	4000 Vpk	Universal Input	1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1	No
GlobTek, Inc. GTM962250P22516A-F	Chassis Mount	Household Appliances ITE (Commercial) Medical	16 V	225 W	Open Frame	80 °C	-25 °C	14.06 A	CB CE cETLus EAC UKRSepro VCCI	4 in	2 in	1.18 in	4000 Vpk	Universal Input	1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1	No
GlobTek, Inc. GTM962250P22528A-F	Chassis Mount	Household Appliances ITE (Commercial) Medical	28 V	140 W 225 W	Open Frame	80 °C	-25 °C	5 A	CB CE cETLus EAC UKRSepro VCCI	4 in	2 in	1.18 in	4000 Vpk		1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1
GlobTek, Inc. GTM962250P22536A-CF	Chassis Mount	Household Appliances ITE (Commercial) Medical	36 V	225 W	Open Frame	80 °C	-25 °C	6.25 A	CB CE cETLus EAC UKRSepro VCCI	5 in	3 in	1.18 in	4000 Vpk	Universal Input	1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1	No
GlobTek, Inc. GTM962250P22515A-F	Chassis Mount	Household Appliances ITE (Commercial) Medical	15 V	225 W	Open Frame	80 °C	-25 °C	15 A	CB CE cETLus EAC UKRSepro VCCI	4 in	2 in	1.18 in	4000 Vpk	Universal Input	1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1	No
GlobTek, Inc. GTM962250P22530A-F	Chassis Mount	Household Appliances ITE (Commercial) Medical	30 V	225 W	Open Frame	80 °C	-25 °C	7.5 A	CB CE cETLus EAC UKRSepro VCCI	4 in	2 in	1.18 in	4000 Vpk	Universal Input	1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1	No
GlobTek, Inc. GTM962250P22520A-F	Chassis Mount	Household Appliances ITE (Commercial) Medical	20 V	140 W 225 W	Open Frame	80 °C	-25 °C	7 A	CB CE cETLus EAC UKRSepro VCCI	4 in	2 in	1.18 in	4000 Vpk		1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1
GlobTek, Inc. GTM962250P22522A-F	Chassis Mount	Household Appliances ITE (Commercial) Medical	22 V	140 W 225 W	Open Frame	80 °C	-20 °C	6.36 A	CB CE cETLus EAC UKRSepro VCCI	4 in	2 in	1.18 in	4000 Vpk		1	95 %	85 VAC	264 V	60335-1 60601-1 60950-1 62368-1
