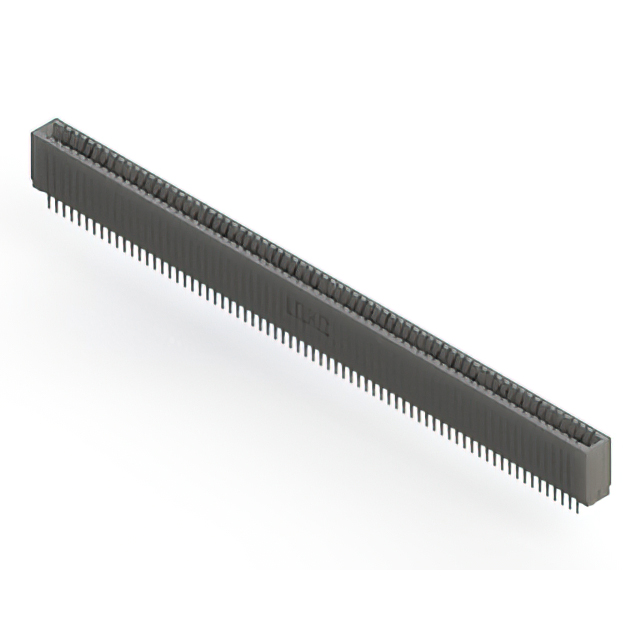

745-142-520-201 - 745-142-520-201

745-142-520-201

Active
EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 142 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetEnhanced Product Overview EN+1
745-142-520-201 - 745-142-520-201

745-142-520-201

Active
EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 142 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheetEnhanced Product Overview EN+1

Technical Specifications

Parameters and characteristics for this part

Specification745-142-520-201
Card Thickness [Max]1.78 mm
Card Thickness [Max]0.07 in
Card Thickness [Min]1.37 mm
Card Thickness [Min]0.054 "
Card TypeNon Specified - Dual Edge
ColorBlack
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialCopper Alloy
Contact TypeCantilever
GenderFemale
Material - InsulationPolyester Thermoplastic
Mounting TypeThrough Hole
Number of Positions142
Number of Positions/Bay/Row [custom]71
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch [x]2.54 mm
Pitch [x]0.1 in
Read OutDual
TerminationPress-Fit
Termination Rows2

745-142 Series

PartContact FinishContact MaterialTerminationContact Finish ThicknessContact Finish ThicknessContact TypeNumber of PositionsCard Thickness [Min]Card Thickness [Min]Card Thickness [Max]Card Thickness [Max]Card TypePitch [x]Pitch [x]Termination RowsGenderNumber of RowsNumber of Positions/Bay/Row [custom]Mounting TypeMaterial - InsulationOperating Temperature [Min]Operating Temperature [Max]Read OutColor
EDAC Inc.
745-142-545-206
Gold
Copper Alloy
Press-Fit
0.76 Ám
30 Áin
Cantilever
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black
EDAC Inc.
745-142-522-201
Gold
Copper Alloy
Press-Fit
0.76 Ám
30 Áin
Cantilever
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black
EDAC Inc.
745-142-522-206
Gold
Copper Alloy
Press-Fit
0.76 Ám
30 Áin
Cantilever
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black
EDAC Inc.
745-142-560-206
Gold
Copper Alloy
Press-Fit
0.76 Ám
30 Áin
Cantilever
Make Before Break
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black
EDAC Inc.
745-142-541-206
Gold
Copper Alloy
Press-Fit
Wire Wrap
0.76 Ám
30 Áin
Cantilever
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black
EDAC Inc.
745-142-545-201
Gold
Copper Alloy
Press-Fit
0.76 Ám
30 Áin
Cantilever
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black
EDAC Inc.
745-142-520-206
Gold
Copper Alloy
Press-Fit
0.76 Ám
30 Áin
Cantilever
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black
EDAC Inc.
745-142-520-201
Gold
Copper Alloy
Press-Fit
0.76 Ám
30 Áin
Cantilever
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black
EDAC Inc.
745-142-525-201
Gold
Copper Alloy
Press-Fit
0.76 Ám
30 Áin
Cantilever
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black
EDAC Inc.
745-142-525-206
Gold
Copper Alloy
Press-Fit
0.76 Ám
30 Áin
Cantilever
142
1.37 mm
0.054 "
1.78 mm
0.07 in
Non Specified - Dual Edge
2.54 mm
0.1 in
2
Female
2
71
Through Hole
Polyester Thermoplastic
-40 °C
105 ░C
Dual
Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 25$ 17.95
NewarkEach 1$ 18.02
100$ 10.70
250$ 10.14
500$ 9.79
1000$ 8.50

Description

General part information

745-142 Series

142 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
