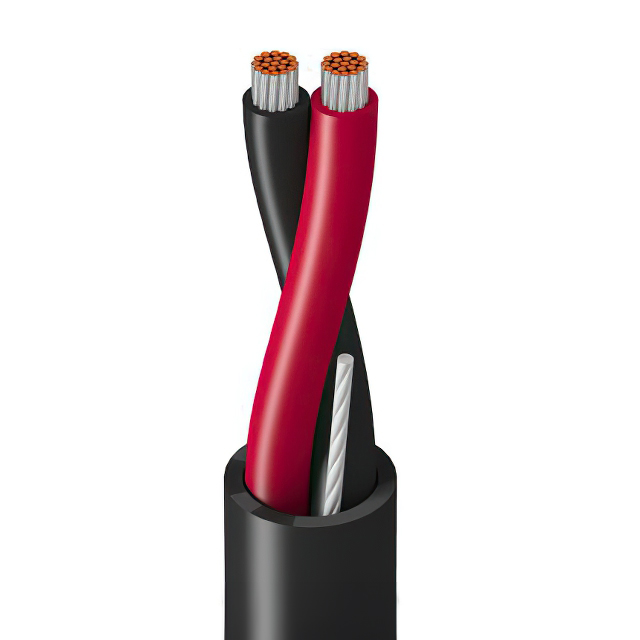

9410 060U500

Active

Belden Inc.

CABLE 2COND 16AWG CHROME 500'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG CHROME 500'

Technical Specifications

Parameters and characteristics for this part

Specification	9410 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	6.55 mm
Jacket (Insulation) Diameter [diameter]	0.258 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Wire Gauge	16 AWG

Part	Conductor Insulation	Conductor Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Features	Cable Type	Wire Gauge	Jacket (Insulation) Material	Usage	Length	Length	Ratings
Belden Inc. 9410 060U500	Poly-Vinyl Chloride (PVC)	Copper Tinned	Chrome	6.55 mm	0.258 in	19 Strands	29 AWG	500 '	152.4 m	2	0.94 mm	0.037 in	-30 ░C	105 ░C	Rip Cord	Multi-Conductor	16 AWG	Poly-Vinyl Chloride (PVC)
Belden Inc. 9410 0602500	Poly-Vinyl Chloride (PVC)	Copper Tinned	Chrome	6.6 mm	0.26 in	19 Strands	29 AWG			2	0.94 mm	0.037 in	-30 ░C	105 ░C	Rip Cord	Multi-Conductor	16 AWG	Poly-Vinyl Chloride (PVC)	Instrumentation	2500 ft	762 m	UL Style 2464

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 16 AWG 500.0' (152.4m)
