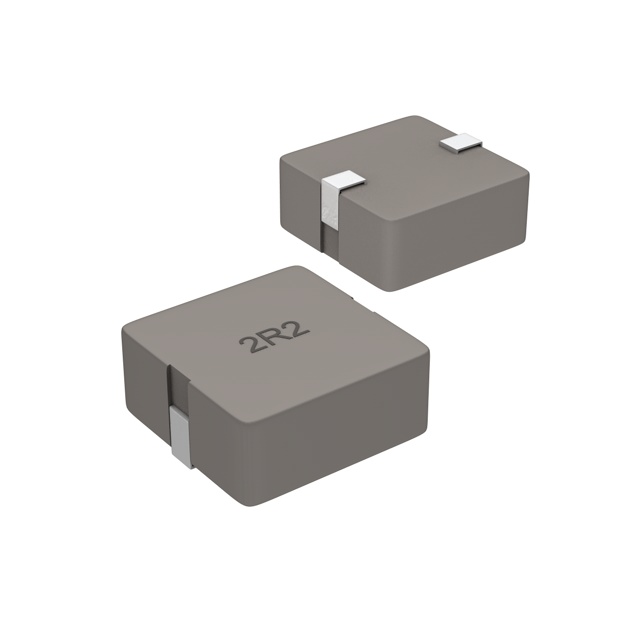

SRP4020 Series

Part	Height - Seated (Max)	Shielding	Material - Core	Mounting Type	Type	Inductance	Size / Dimension Width	Size / Dimension Length	Package / Case	Inductance Frequency - Test	Operating Temperature (Max)	Operating Temperature (Min)	Tolerance	DC Resistance (DCR) (Max)	Current Rating	Current - Saturation (Isat)
Bourns Inc. SRP4020-R36M	0.079 in	Shielded	Iron	Surface Mount	Molded	360 nH	0.157 in	0.189 in	Nonstandard	100 kHz	125 °C	-55 °C	20 %	12 mOhm	9 A	11 A
Bourns Inc. SRP4020-3R3M	0.079 in	Shielded	Iron	Surface Mount	Molded	3.3 µH	0.157 in	0.189 in	Nonstandard	100 kHz	125 °C	-55 °C	20 %	48 mOhm	3.3 A	4.3 A
Bourns Inc. SRP4020-4R7M	0.079 in	Shielded	Iron	Surface Mount	Molded	4.7 µH	0.157 in	0.189 in	Nonstandard	100 kHz	125 °C	-55 °C	20 %	75 mOhm	2.7 A	4 A
Bourns Inc. SRP4020-1R2M	0.079 in	Shielded	Iron	Surface Mount	Molded	1.2 µH	0.157 in	0.189 in	Nonstandard	100 kHz	125 °C	-55 °C	20 %	22 mOhm	5 A	5 A
Bourns Inc. SRP4020-R88M	0.079 in	Shielded	Iron	Surface Mount	Molded	880 nH	0.157 in	0.189 in	Nonstandard	100 kHz	125 °C	-55 °C	20 %	18 mOhm	6 A	6.5 A
Bourns Inc. SRP4020-R56M	0.079 in	Shielded	Iron	Surface Mount	Molded	560 nH	0.157 in	0.189 in	Nonstandard	100 kHz	125 °C	-55 °C	20 %	14.7 mOhm	7 A	8 A
