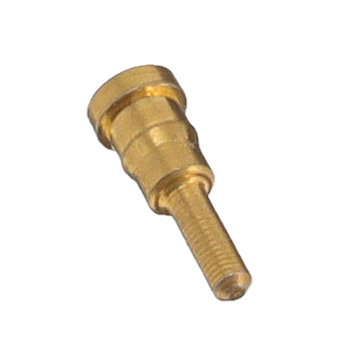

0703-0-15-15-12-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.022 PRESSFIT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.022 PRESSFIT

Technical Specifications

Parameters and characteristics for this part

Specification	0703-0-15-15-12-27-04-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall	4.83 mm
Length - Overall	0.19 in
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	1.8 mm
Socket Depth	0.071 in
Tail Diameter	0.03 in
Tail Diameter	0.76 mm
Tail Type	Standard Tail
Termination	Press-Fit

Part	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter	Tail Diameter	Tail Type	Contact Finish	Length - Overall	Length - Overall	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 0703-0-15-80-12-27-04-0	0.38 mm	0.022 in	0.015 "	0.56 mm	Beryllium Copper	Press-Fit	0.76 Ám	30 Áin	0.03 in	0.76 mm	Standard Tail	Gold	4.83 mm	0.19 in	1.83 mm	0.072 in	1.8 mm	0.071 in	0.057 "	1.45 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0703-0-15-01-12-02-04-0	0.38 mm	0.022 in	0.015 "	0.56 mm	Beryllium Copper	Press-Fit	2.54 µm	100 µin	0.03 in	0.76 mm	Standard Tail	Tin-Lead	4.83 mm	0.19 in	1.83 mm	0.072 in	1.8 mm	0.071 in	0.057 "	1.45 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0703-0-15-80-12-84-04-0	0.38 mm	0.022 in	0.015 "	0.56 mm	Beryllium Copper	Press-Fit	2.54 µm	100 µin	0.03 in	0.76 mm	Standard Tail	Tin	4.83 mm	0.19 in	1.83 mm	0.072 in	1.8 mm	0.071 in	0.057 "	1.45 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0703-0-15-15-12-27-04-0	0.38 mm	0.022 in	0.015 "	0.56 mm	Beryllium Copper	Press-Fit	0.76 Ám	30 Áin	0.03 in	0.76 mm	Standard Tail	Gold	4.83 mm	0.19 in	1.83 mm	0.072 in	1.8 mm	0.071 in	0.057 "	1.45 mm	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) Standard Tail Press-Fit
