09120012794

Active

HARTING Technology Group

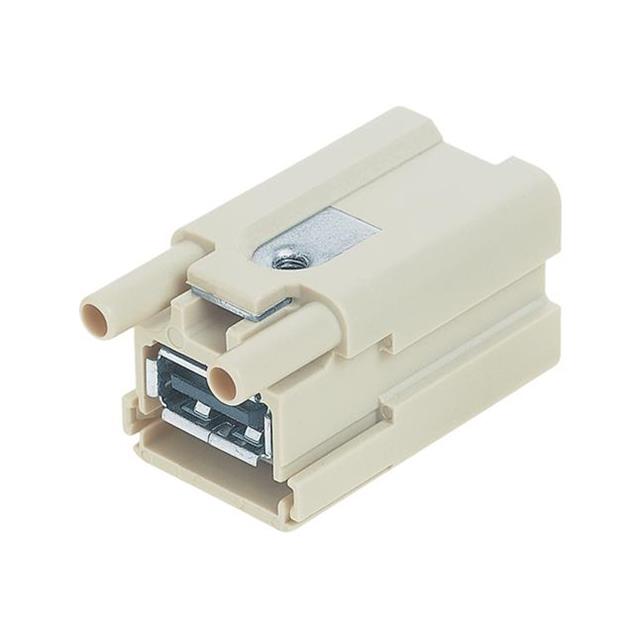

HAN BRID-USB PANEL FEED THROUGH ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN BRID-USB PANEL FEED THROUGH ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09120012794

Connector Type	Insert with USB
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Crimp
Voltage Rating	50 V

Part	Termination Style	Material Flammability Rating	Connector Type	Gender	Size	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Color	Contact Finish	Contact Material	Current Rating (Amps)	Style	Contents
HARTING Technology Group 09120012774	Crimp	UL94 V-0	Insert with Firewire	Male	3 A	6	50 V	85 °C	-40 °C	Polycarbonate (PC)
HARTING Technology Group 09120012751	Screw	UL94 V-0		Female	3 A	1	400 V	125 °C	-40 °C	Nylon Polyamide (PA) Polycarbonate (PC)	Gray	Silver	Copper Alloy	100 A
HARTING Technology Group 09120012661	Screw				3 A	1									Side Entry	Panel Connector Assembly
HARTING Technology Group 09120012651	Screw	UL94 V-0		Male	3 A	1	400 V	125 °C	-40 °C	Nylon Polyamide (PA) Polycarbonate (PC)	Gray	Silver	Copper Alloy	100 A
HARTING Technology Group 09120012794	Crimp	UL94 V-0	Insert with USB	Male	3 A	4	50 V	85 °C	-40 °C	Polycarbonate (PC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert with USB 4 Position Crimp
