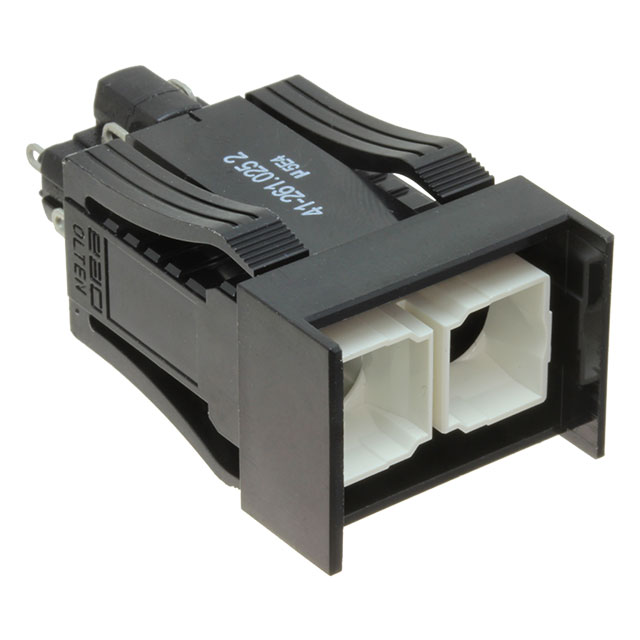

41-261.025

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	41-261.025

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP40
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	21 mm
Panel Cutout Dimensions [y]	15 mm
Switch Function	On-Off, Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

SWITCH PB DPST-NO/NC 5A 250V

Part	Circuit	Voltage Rating - AC	Current Rating (Amps)	Type	Termination Style	Actuator Marking	Ingress Protection	Actuator Type	Switch Function	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type
EAO 41-261.025	DPST-NO/NC	250 V	5 A	Standard	Solder Lug	No Marking	IP40	Rectangular, Button (Not Included)	Off-On, On-Off	Rectangular	21 mm	15 mm	Panel Mount, Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
