5302GE 008U1000

Active

Belden Inc.

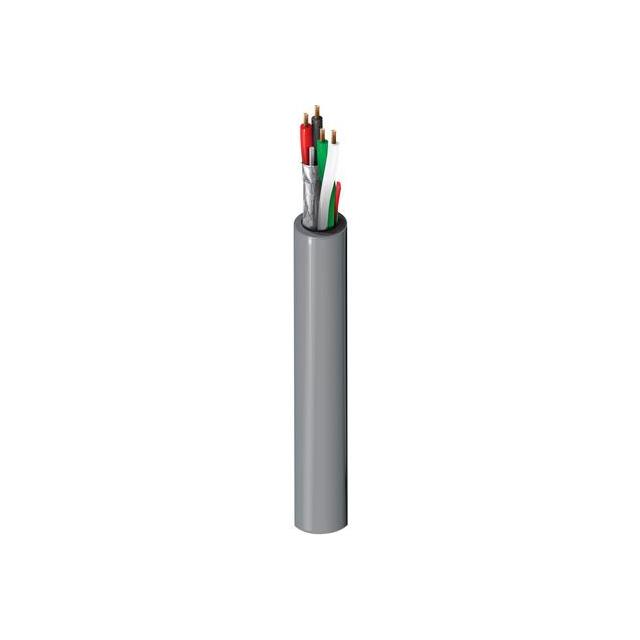

CABLE 4CON 18AWG GRAY SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4CON 18AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5302GE 008U1000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.225 "
Jacket (Insulation) Diameter [diameter]	5.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	18 AWG

Part	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Wire Gauge	Shield Type	Ratings	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Voltage	Features	Shield Coverage	Conductor Insulation	Conductor Material
Belden Inc. 5302GE 008U1000	1000 ft	304.8 m	0.225 "	5.72 mm	Multi-Conductor	Aluminum	26 AWG	7	Gray	18 AWG	Foil	UL Style CMR	Poly-Vinyl Chloride (PVC) Riser	0.015 in	0.381 mm	Alarm Security Sound	300 V	Rip Cord	100 %	Poly-Vinyl Chloride (PVC)	Copper Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.38

General part information

4 (1 Pair Twisted) Conductor Multi-Conductor Cable Gray 18 AWG Foil 1000.0' (304.8m)
