V-1100-SMD/B-L

Active

Assmann WSW Components

HEAT SINK COPPER DPAK TO-252

Search across all available documentation for this part.

Active

Assmann WSW Components

HEAT SINK COPPER DPAK TO-252

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

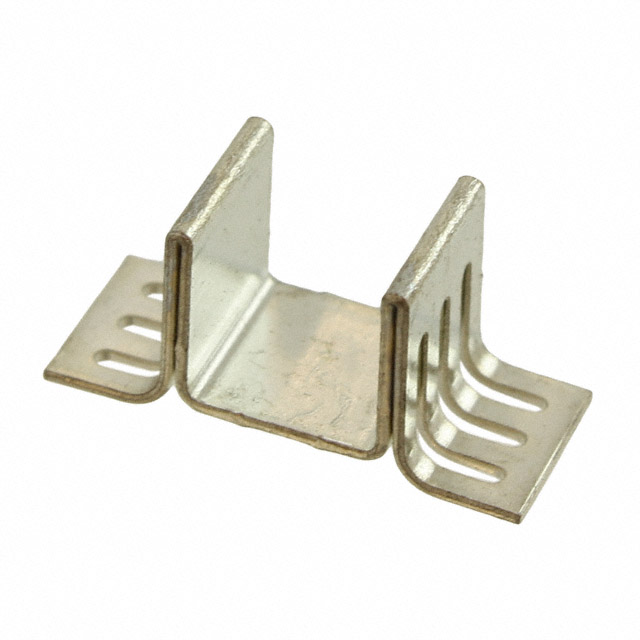

Heat Sink TO-252 (DPak) Copper Top Mount

Technical documentation and resources

Part	Width [y]	Width [y]	Package Cooled	Package Cooled	Thermal Resistance @ Natural	Fin Height [z]	Fin Height [z]	Type	Length [x]	Length [x]	Material Finish	Shape	Attachment Method	Material	Length	Length
Assmann WSW Components V-1100-SMD/B-L	0.79 "	20.07 mm	TO-252	DPak	25 °C/W	9.91 mm	0.39 in	Top Mount	8.13 mm	0.32 in	Tin	Rectangular, Fins	SMD Pad	Copper
Assmann WSW Components V-1100-SMD/B	0.79 "	20.07 mm	TO-252	DPak	25 °C/W	9.91 mm	0.39 in	Top Mount	8.13 mm	0.32 in	Tin	Rectangular, Fins	SMD Pad	Copper
Assmann WSW Components V-1100-SMD/A-L	1.031 "	26.2 mm	TO-263 (D˛Pak)		23 °C/W	9.91 mm	0.39 in	Top Mount			Tin	Rectangular, Fins	SMD Pad	Copper	0.5 in	12.7 mm
