VF4-15F13

Active

TE Connectivity Potter & Brumfield Relays

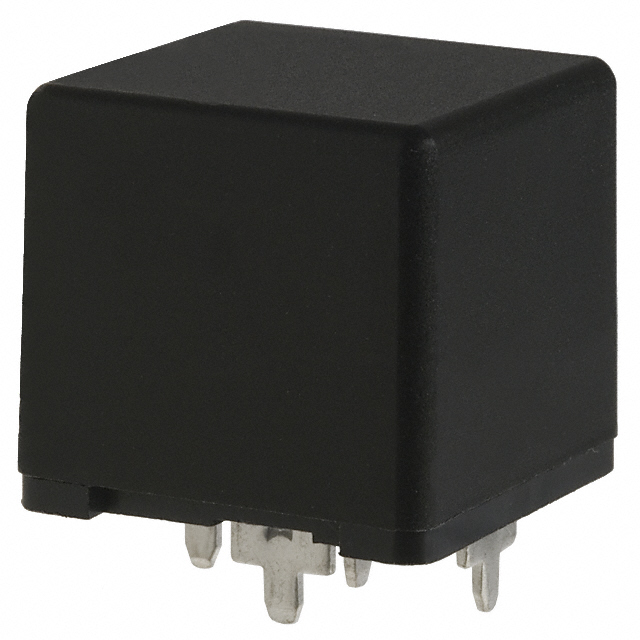

RELAY GEN PURPOSE SPDT 40A 12V

Deep-Dive with AI

Search across all available documentation for this part.

VF4-15F13

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 40A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VF4-15F13

Coil Current	16.7 mA
Coil Resistance	90 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	40 A
Mounting Type	Through Hole
Must Operate Voltage	7.2 VDC
Must Release Voltage	1.2 VDC
Operate Time	7 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	2 ms
Switching Voltage	14 VDC
Termination Style	PC Pin

VF4 Series

Part	Coil Current	Coil Voltage	Must Operate Voltage	Must Release Voltage	Coil Type	Relay Type	Release Time	Contact Rating (Current)	Mounting Type	Termination Style	Contact Form	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Operate Time	Contact Material	Features	Seal Rating
TE Connectivity Potter & Brumfield Relays VF4-15H13	16.7 mA	24 VDC	14.4 VDC	2.4 VDC	Non Latching	General Purpose	2 ms	40 A	Through Hole	PC Pin	SPDT (1 Form C)	14 VDC	125 °C	-40 °C	360 Ohms	7 ms	Silver Nickel (AgNi)
TE Connectivity Potter & Brumfield Relays VF4-65F11-S01	16.7 mA	12 VDC	7.2 VDC	1.2 VDC	Non Latching	General Purpose	2 ms	40 A	Chassis Mount	Plug In Quick Connect - 0.250" (6.3mm)	SPDT (1 Form C)	14 VDC	125 °C	-40 °C	79.5 Ohms	7 ms	Silver Nickel (AgNi)	Resistor
TE Connectivity Potter & Brumfield Relays VF4-15F13-C01	16.7 mA	12 VDC	7.2 VDC	1.2 VDC	Non Latching	General Purpose	2 ms	40 A	Through Hole	PC Pin	SPDT (1 Form C)	14 VDC	125 °C	-40 °C	90 Ohms	7 ms	Silver Nickel (AgNi)
TE Connectivity Potter & Brumfield Relays 6-1393298-5	16.7 mA	12 VDC	7.2 VDC	1.2 VDC	Non Latching	General Purpose	2 ms	40 A	Socketable	Plug In Quick Connect - 0.250" (6.3mm)	SPDT (1 Form C)	14 VDC	125 °C	-40 °C	90 Ohms	7 ms	Silver Nickel (AgNi)	Resistor
TE Connectivity Potter & Brumfield Relays VF4-65H11-S08	16.7 mA	24 VDC	14.4 VDC	2.4 VDC	Non Latching	General Purpose	2 ms	40 A	Socketable	Plug In Quick Connect - 0.250" (6.3mm)	SPDT (1 Form C)		125 °C	-40 °C	360 Ohms	7 ms	Silver (Ag)	Resistor	Sealed - Fully
TE Connectivity Potter & Brumfield Relays VF4-15F13	16.7 mA	12 VDC	7.2 VDC	1.2 VDC	Non Latching	General Purpose	2 ms	40 A	Through Hole	PC Pin	SPDT (1 Form C)	14 VDC	125 °C	-40 °C	90 Ohms	7 ms	Silver Nickel (AgNi)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.17
		10	$ 22.96
		25	$ 21.75
		50	$ 20.54
		100	$ 19.33
		300	$ 18.13

Description

General part information

VF4 Series

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole

Documents

Technical documentation and resources

No documents available
