TP-SC24-20

Active

Tycon Systems Inc.

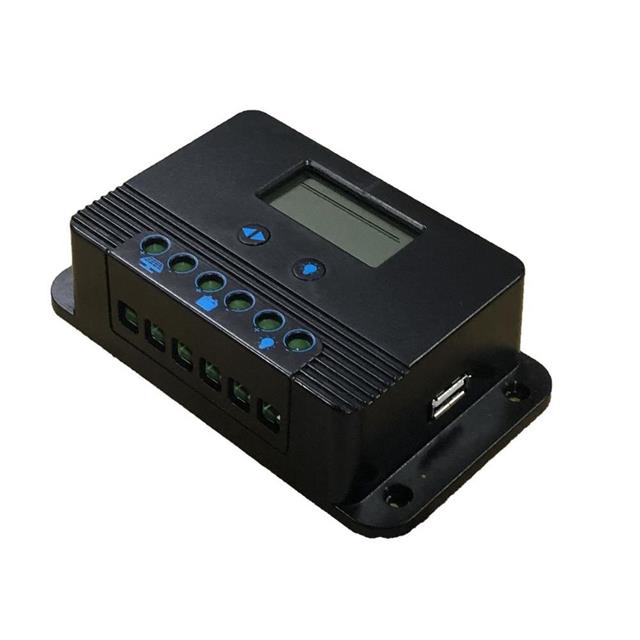

BATT CHRGR SOLAR 14.4V 28.8V 20A

Search across all available documentation for this part.

Active

Tycon Systems Inc.

BATT CHRGR SOLAR 14.4V 28.8V 20A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP-SC24-20	TP-SC24 Series

Approval Agency	CE	CE
Battery Cell Size	12V, 24V	12V, 24V
Battery Cell Size	24 V, 12 V	12 - 24 V
Battery Chemistry	Lead Acid	Lead Acid, Lithium-Ion
Charge Current - Max [Max]	20 A	20 A
Features	LED Indicator, USB Pluggable, Multiple Charge Modes	LED Indicator, USB Pluggable, Multiple Charge Modes
Mounting Type	Chassis Mount	Chassis Mount
Number of Cells	1	1
Operating Temperature [Max]	60 °C	55 - 60 °C
Operating Temperature [Min]	-35 °C, -30 ░C	-35 - -30 °C
Power - Max	260 W, 520 W	260 - 520 W
Size / Dimension [x]	129.54 mm	129.54 - 210.82 mm
Size / Dimension [x]	5.1 "	5.1 - 8.3 "
Size / Dimension [y]	3 "	3 - 5.9 "
Size / Dimension [y]	76.2 mm	76.2 - 149.86 mm
Size / Dimension [z]	1.5 "	1.5 - 2.3 "
Size / Dimension [z]	38.1 mm	38.1 - 58.42 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Solar Charger	Solar Charger
Voltage - Input	55 V	55 - 110 V
Voltage - Nominal	28.8 V, 14.4 V	14.4 - 28.8 V
Voltage - Nominal [Max]	28.8 V	28.8 V
Voltage - Nominal [Min]	14.4 V	14.4 V

BATT CHRGR SOLAR 14.4V 28.8V 20A

Part	Type	Charge Current - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max	Battery Chemistry	Number of Cells	Voltage - Nominal [Min]	Voltage - Nominal [Max]	Termination Style	Voltage - Nominal	Features	Approval Agency	Battery Cell Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Voltage - Input	Battery Cell Size
Tycon Systems Inc. TP-SC24-20	Solar Charger	20 A	-35 °C, -30 ░C	60 °C	260 W, 520 W	Lead Acid	1	14.4 V	28.8 V	Screw Terminal	14.4 V, 28.8 V	LED Indicator, Multiple Charge Modes, USB Pluggable	CE	12V, 24V	129.54 mm	1.5 "	38.1 mm	3 "	76.2 mm	5.1 "	Chassis Mount	55 V	12 V, 24 V
Tycon Systems Inc. TP-SC24-20N-MPPT	Solar Charger	20 A	-35 °C	55 °C	260 W, 520 W	Lead Acid, Lithium-Ion	1			Screw Terminal		LED Indicator, Multiple Charge Modes	CE	12V, 24V	210.82 mm	2.3 "	58.42 mm	5.9 "	149.86 mm	8.3 "	Chassis Mount	110 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solar Charger Battery Charger 14.4V, 28.8V 20A 12V, 24V
