SBRT25M60SLP-13

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Search across all available documentation for this part.

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Technical Specifications

Parameters and characteristics for this part

Specification	SBRT25M60SLP-13

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	150 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	8-PowerTDFN
Speed	Standard Recovery >500ns
Speed	200 mA

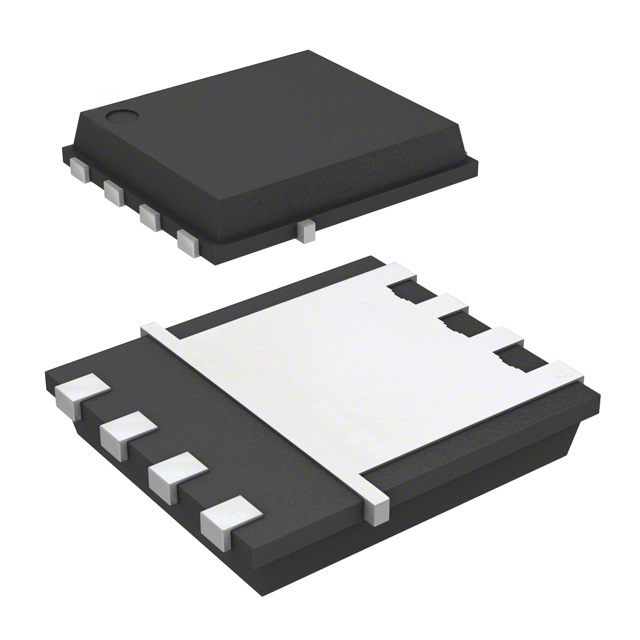

Supplier Device Package	PowerDI5060-8 (Type K)
Technology	Super Barrier
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	600 mV

NRND = Not Recommended for New Design

Part	Voltage - Forward (Vf) (Max) @ If	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Mounting Type	Speed	Speed
Diodes Inc SBRT25M60SLP-13	600 mV	8-PowerTDFN	150 °C	-55 °C	25 A	150 µA	Super Barrier	60 V	PowerDI5060-8 (Type K)	Surface Mount	Standard Recovery >500ns	200 mA
