Technical Specifications
Parameters and characteristics for this part
| Specification | PWD5F60TR |
|---|---|
| Applications | Industrial |
| Current - Output / Channel | 3.5 A |
| Current - Peak Output | 14 A |
| Fault Protection | UVLO |
| Interface | Logic |
| Load Type | Inductive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (2) |
| Package / Case | 46-PowerVQFN |
| Rds On (Typ) | 1.38 Ohm |
| Supplier Device Package | 46-VFQFPN (15x7) |
| Technology | Power MOSFET |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.98 | |
| 10 | $ 3.79 | |||
| 25 | $ 3.50 | |||
| 100 | $ 3.17 | |||
| 250 | $ 3.01 | |||
| 500 | $ 2.92 | |||
| 1000 | $ 2.84 | |||
| Digi-Reel® | 1 | $ 4.98 | ||
| 10 | $ 3.79 | |||
| 25 | $ 3.50 | |||
| 100 | $ 3.17 | |||
| 250 | $ 3.01 | |||
| 500 | $ 2.92 | |||
| 1000 | $ 2.84 | |||
| Tape & Reel (TR) | 2500 | $ 2.55 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 3.71 | |
| 10 | $ 3.46 | |||
| 25 | $ 3.26 | |||
| 50 | $ 3.06 | |||
| 100 | $ 2.85 | |||
| 250 | $ 2.74 | |||
| 500 | $ 2.73 | |||
Description
General part information
PWD5F60 Series

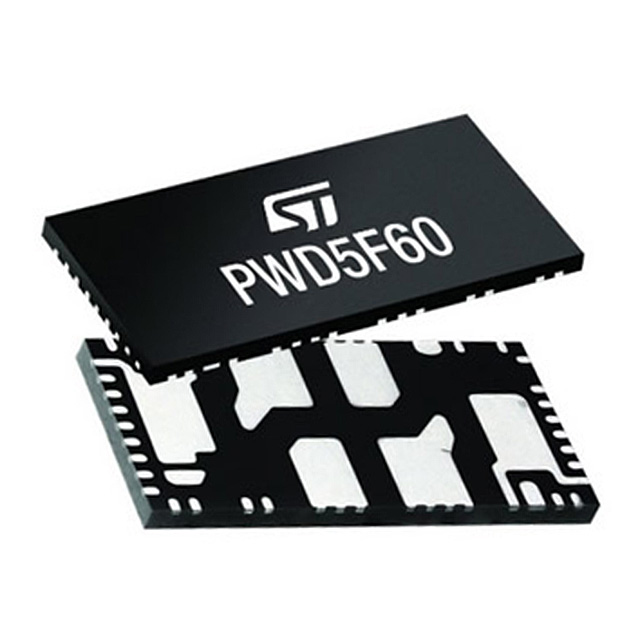

The PWD5F60 is an advanced power system-in package integrating gate drivers and four N-channel power MOSFETs in dual half-bridge configuration.
The integrated power MOSFETs have RDS(ON)of 1.38 Ω and 600 V drain-source breakdown voltage, while the embedded gate drivers high side can be easily supplied by the integrated bootstrap diode. The high integration of the device allows to efficiently drive loads in a tiny space.
The PWD5F60 accepts a supply voltage (VCC) extending over a wide range (10 V to 20 V) and also features UVLO protection on both the lower and upper driving sections, preventing the power switches from operating in low efficiency or dangerous conditions.
