U-1PU-113-200B2

Active

AMPHENOL RF

CBL ASSY AMC4 PLUG-PLUG 7.874"

Search across all available documentation for this part.

Active

AMPHENOL RF

CBL ASSY AMC4 PLUG-PLUG 7.874"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

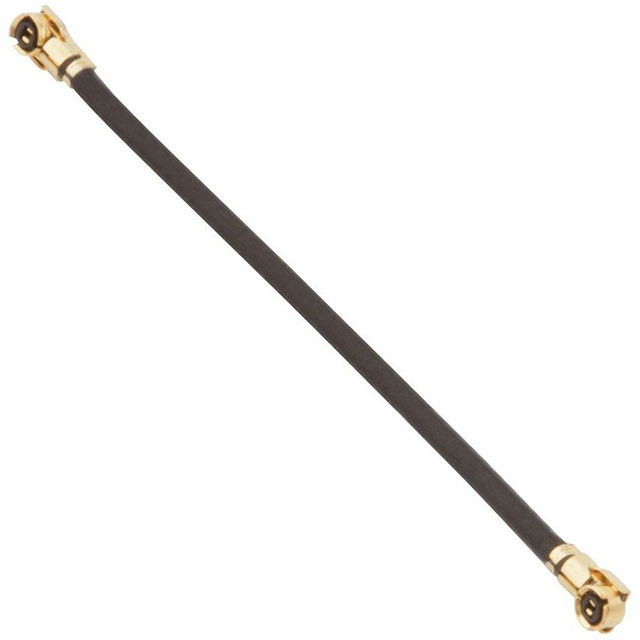

Cable Assembly Coaxial AMC4 to AMC4 1.13mm OD Coaxial Cable 7.874" (200.00mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CBL ASSY AMC4 PLUG-PLUG 9.843"

Part	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Type	Style	Length [x]	Length [x]	Frequency - Max [Max]	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Overall Impedance	2nd Contact Gender	1st Connector	1st Contact Gender	Length	Length
AMPHENOL RF U-1PU-113-250B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4	9.843 "	250 mm	6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female
AMPHENOL RF U-1PU-113-200B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4			6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female	7.874 in	200 mm
AMPHENOL RF U-1PU-113-500B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4			6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female	19.69 "	50 cm
AMPHENOL RF U-1PU-113-600B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4			6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female	23.62 in	600 mm
AMPHENOL RF U-1PU-113-035B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4	1.378 in	35 mm	6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female
