2304-6221-TG

Active

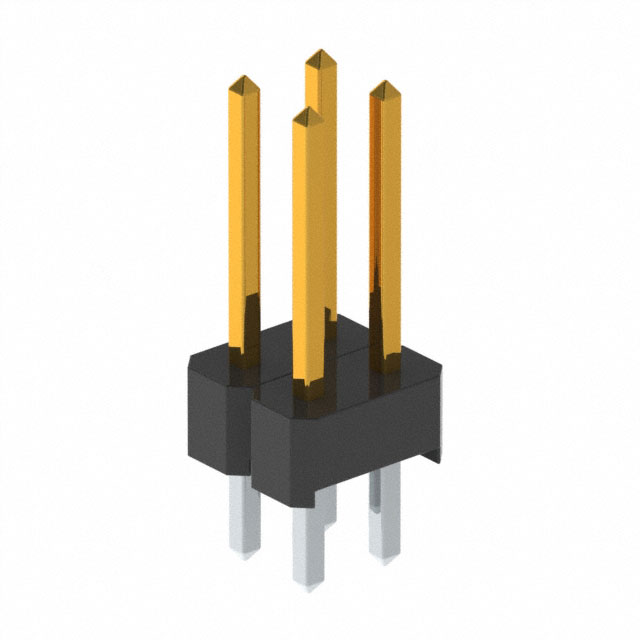

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2304-6221-TG

Active

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.42
		10	$ 0.36
		100	$ 0.28
		500	$ 0.24
		1000	$ 0.20
		5000	$ 0.17
		10000	$ 0.16

Description

General part information

2304 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2304-6221-TG	2304 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	-	5.84 mm
Contact Length - Mating [x]	0.318 "	0.23 - 0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	-	2.79 mm
Contact Length - Post [x]	0.12 in	0.11 - 0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 - 6.14 mm
Insulation Height	-	0.242 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.538 "	0.45 - 0.538 "
Overall Contact Length	13.67 mm	11.43 - 13.67 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

2304 Series

CONN HEADER R/A 4POS 2.54MM

Part	Mounting Type	Contact Shape	Number of Positions	Termination	Number of Rows	Material Flammability Rating	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Height	Insulation Height [custom]	Current Rating (Amps)	Number of Positions Loaded	Style	Shrouding	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating
3M 2304-5221-TG	Through Hole, Right Angle	Square	4	Solder	2	UL94 V-0	Copper Alloy	0.318 "	8.08 mm	2.54 mm	0.1 in	Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	6.14 mm	0.242 in	3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.11 in	2.79 mm
3M 2304-6221-TG	Through Hole	Square	4	Solder	2	UL94 V-0	Copper Alloy	0.318 "	8.08 mm	2.54 mm	0.1 in	Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	2.54 mm		3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.12 in		0.1 in	3.05 mm	0.538 "	13.67 mm
3M 2304-6211-TG	Through Hole	Square	4	Solder	1	UL94 V-0	Copper Alloy	0.318 "	8.08 mm			Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	2.54 mm		3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.12 in		0.1 in	3.05 mm	0.538 "	13.67 mm
3M 2304-5111-TG	Through Hole, Right Angle	Square	4	Solder	1	UL94 V-0	Copper Alloy	0.23 in				Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	2.54 mm		3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.12 in		0.1 in	3.05 mm			5.84 mm
3M 2304-6121-TG	Through Hole	Square	4	Solder	2	UL94 V-0	Copper Alloy	0.23 in		2.54 mm	0.1 in	Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	2.54 mm		3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.12 in		0.1 in	3.05 mm	0.45 "	11.43 mm	5.84 mm
