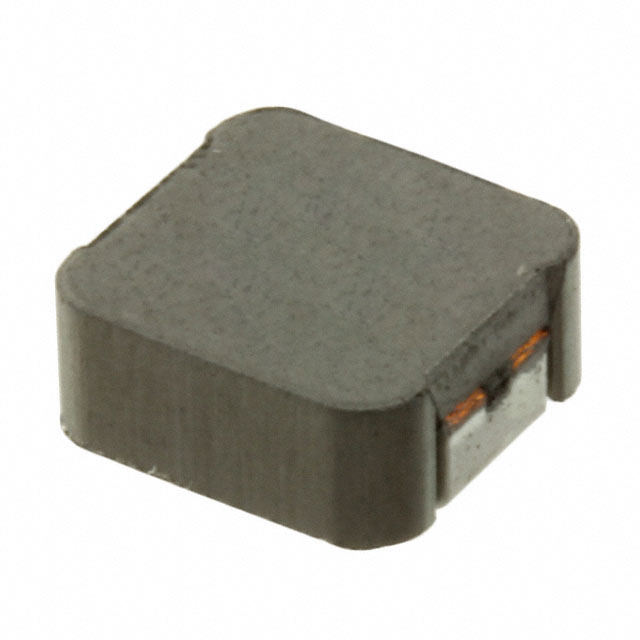

HA72E-061R0LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 1UH 10.3A 10 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

HA72E-061R0LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 1UH 10.3A 10 MOHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.35
		10	$ 1.14
		25	$ 1.04
		50	$ 0.97
		100	$ 0.81
		250	$ 0.75
		500	$ 0.70
		1000	$ 0.64

Description

General part information

HA72E Series

1 µH Unshielded Molded Inductor 10.3 A 10mOhm Max 2-SMD

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HA72E-061R0LFTR13	HA72E Series

Current - Saturation (Isat)	15 A	6.5 - 45 A
Current Rating (Amps)	10.3 A	5 - 35 A
DC Resistance (DCR)	-	2 - 42 mOhm
DC Resistance (DCR) [Max]	10 mOhm	1.6 - 40.5 mOhm
Height - Seated (Max)	3 mm	3 mm
Height - Seated (Max)	-	0.256 in
Height - Seated (Max)	-	6.5 mm
Height - Seated (Max) [Max]	0.118 in	0.118 in
Inductance	1 µH	0.68 - 470 µH
Inductance Frequency - Test	100 kHz	100 kHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	2-SMD	Nonstandard, 2-SMD
Ratings	AEC-Q200	AEC-Q200
Shielding	Unshielded	Unshielded
Size / Dimension [x]	0.285 in	0.285 - 0.549 "
Size / Dimension [x]	7.23 mm	7.23 - 13.95 mm
Size / Dimension [y]	6.8 mm	6.8 - 13 mm
Size / Dimension [y]	0.268 in	0.268 - 0.512 in
Tolerance	20 %	20 %
Type	Molded	Molded

HA72E Series

FIXED IND 20UH 5A 40.5 MOHM SMD

Part	Current - Saturation (Isat)	Tolerance	Current Rating (Amps)	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Mounting Type	Type	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Ratings	Height - Seated (Max)	Height - Seated (Max) [Max]	DC Resistance (DCR)
TT Electronics/BI Magnetics HA72E-12200HLFTR13	8 A	20 %	5 A	Unshielded	0.256 in	6.5 mm	Nonstandard	Surface Mount	Molded	100 kHz	40.5 mOhm	-40 °C	155 °C	13 mm	13.95 mm	0.512 in	0.549 "	20 µH	AEC-Q200
TT Electronics/BI Magnetics HA72E-061R5LFTR13	10 A	20 %	8.4 A	Unshielded			2-SMD	Surface Mount	Molded	100 kHz	14 mOhm	-40 °C	155 °C	6.8 mm	7.23 mm	0.268 in	0.285 in	1.5 µH	AEC-Q200	3 mm	0.118 in
TT Electronics/BI Magnetics HA72E-123R3HLFTR13	20 A	20 %	18 A	Unshielded	0.256 in	6.5 mm	Nonstandard	Surface Mount	Molded	100 kHz	6.8 mOhm	-40 °C	155 °C	13 mm	13.95 mm	0.512 in	0.549 "	3.3 µH	AEC-Q200
TT Electronics/BI Magnetics HA72E-06R47LFTR13	19 A	20 %	16.1 A	Unshielded			2-SMD	Surface Mount	Molded	100 kHz	4.2 mOhm	-40 °C	155 °C	6.8 mm	7.23 mm	0.268 in	0.285 in	470 nH	AEC-Q200	3 mm	0.118 in
TT Electronics/BI Magnetics HA72E-064R7LFTR13	6.5 A	20 %	5.4 A	Unshielded			2-SMD	Surface Mount	Molded	100 kHz		-40 °C	155 °C	6.8 mm	7.23 mm	0.268 in	0.285 in	4.7 ÁH	AEC-Q200	3 mm	0.118 in	42 mOhm
TT Electronics/BI Magnetics HA72E-061R0LFTR13	15 A	20 %	10.3 A	Unshielded			2-SMD	Surface Mount	Molded	100 kHz	10 mOhm	-40 °C	155 °C	6.8 mm	7.23 mm	0.268 in	0.285 in	1 µH	AEC-Q200	3 mm	0.118 in
TT Electronics/BI Magnetics HA72E-063R3LFTR13	8 A	20 %	6.6 A	Unshielded			2-SMD	Surface Mount	Molded	100 kHz	30 mOhm	-40 °C	155 °C	6.8 mm	7.23 mm	0.268 in	0.285 in	3.3 µH	AEC-Q200	3 mm	0.118 in
TT Electronics/BI Magnetics HA72E-12R68HLFTR13	35 A	20 %	35 A	Unshielded	0.256 in	6.5 mm	Nonstandard	Surface Mount	Molded	100 kHz	1.6 mOhm	-40 °C	155 °C	13 mm	13.95 mm	0.512 in	0.549 "	0.68 µH	AEC-Q200
TT Electronics/BI Magnetics HA72E-062R2LFTR13	8.5 A	20 %	8.3 A	Unshielded			2-SMD	Surface Mount	Molded	100 kHz		-40 °C	155 °C	6.8 mm	7.23 mm	0.268 in	0.285 in	2.2 µH	AEC-Q200	3 mm	0.118 in	20 mOhm
TT Electronics/BI Magnetics HA72E-121R5HLFTR13	27 A	20 %	27 A	Unshielded	0.256 in	6.5 mm	Nonstandard	Surface Mount	Molded	100 kHz	3 mOhm	-40 °C	155 °C	13 mm	13.95 mm	0.512 in	0.549 "	1.5 µH	AEC-Q200
